STH-B24T10005W120B
The product is soft and flexible, with high luminous efficiency and good attenuation performance Excellent weather resistance and uv resistance, product style, can be customized.
The product is soft and flexible, with high luminous efficiency and good attenuation performance Excellent weather resistance and uv resistance, product style, can be customized.
Detailed Specifications
|
Model |
STH-B24T10005W120B |
|
Working voltage（V DC） |
24V DC |
|
Power（W/m） |
9.6W |
|
Luminous flux（lm/m） |
1060-1110 |
|
CCT（K） |
2200K-6000K |
|
CRI（Ra） |
>90 |
|
LED Type |
SMD 2835 |
|
LED Qty（LEDs/m） |
120 |
|
Cutting length（mm） |
50 |
|
FPC Width（mm） |
5 |
|
Control Mode |
Single color |
|
Light Angle（°） |
120° |
|

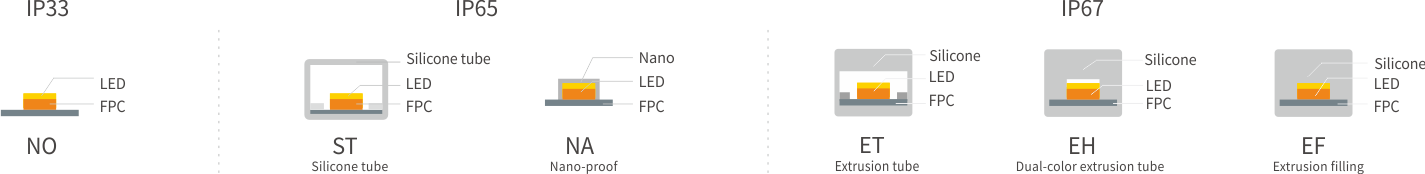

IP Rating（IP） |
IP33/IP65/IP67 |

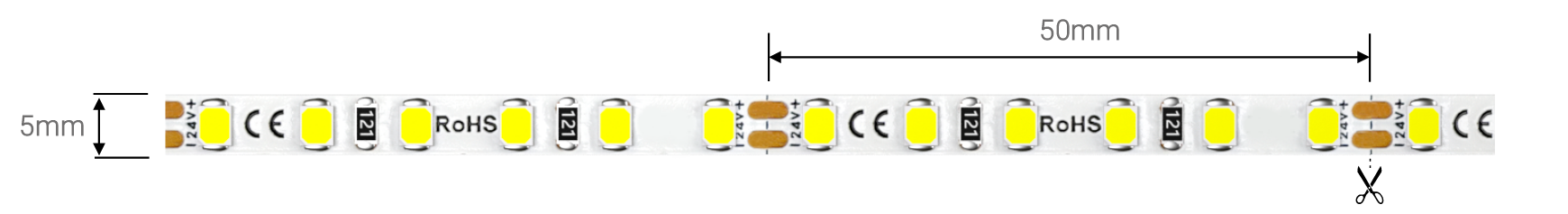

Product Dimension Diagram

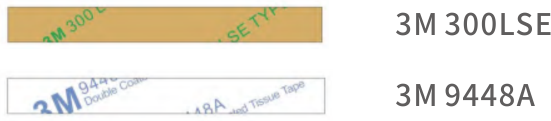

Installation Accessories
Scope of Application
Widely used in: indoor household lighting, commercial lighting, outdoor lighting and so on.
