STH-B12T10006W120B
The product is soft and flexible, with high luminous efficiency and good attenuation performance Excellent weather resistance and uv resistance, product style, can be customized.
The product is soft and flexible, with high luminous efficiency and good attenuation performance Excellent weather resistance and uv resistance, product style, can be customized.
Detailed Specifications
|
Model |
STH-B12T10006W120B |
|
Working voltage（V DC） |
12V DC |
|
Power（W/m） |
9W |
|
Luminous flux（lm/m） |
900-950 |
|
CCT（K） |
3000K-18000K |
|
CRI（Ra） |
>70;>80 |
|
LED Type |
SMD 2835 |
|
LED Qty（LEDs/m） |
120 |
|

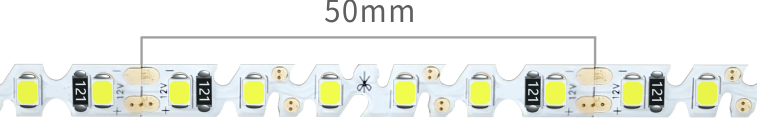

Cutting length（mm） |
50 |
|
FPC Width（mm） |
6 |
|
Light Angle（°） |
120° |
|
IP Rating（IP） |
IP20/IP44 |
Product Dimension Diagram
Installation Accessories
Scope of Application
Applicable to three-dimensional luminous characters, signboards, signs and lighting.
Specifications
Address：5th Floor, Building C, Mingjinhai First Industrial Park, Shiyan, Bao'an District, Shenzhen
Phone number：+86 199 2872 8373
Email：729355534@qq.com
Fax：+86 199 2872 8373
sth-b12t10006w120b-specification.pdf
