STH-D18D
Various protection functions, resistant to salt water, acid and alkali, corrosive gas and ultraviolet. Applicable to: outdoor, building contour, etc.Different shapes can be drawn according to the flexible features of the product.
Various protection functions, resistant to salt water, acid and alkali, corrosive gas and ultraviolet. Applicable to: outdoor, building contour, etc.Different shapes can be drawn according to the flexible features of the product.
Detailed Specifications
|
Model |
STH-D18D |
|
Working voltage（V DC） |
12 / 24V DC |
|
Power（W/m） |
11W(Single Color) / 14.4W(Adjustable CCT) / 15W(RGB) |
|
Luminous flux（lm/m） |
450-500 |
|
CCT/Color |
2200K-6000K R G B Y |
|
CRI（Ra） |
>90 |
|
LED Type |
SMD 2835 SMD 3838 |
|
LED Qty（LEDs/m） |
126(Single Color) / 240(Adjustable CCT) / 84(RGB) |
|
Minimum bending（mm） |
100 |
|
Control mode |
Single Color/Adjustable CCT/RGB |
|
Light Angle（°） |
360° |
|
IP Rating（IP） |
IP67 |

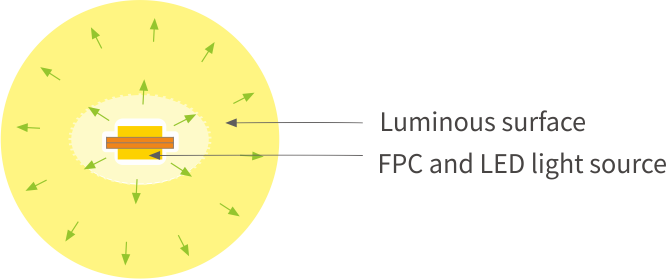

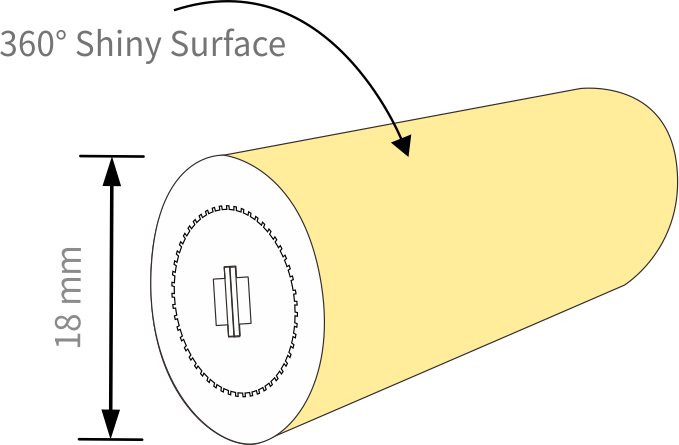

Product Dimension Diagram
Exploded View

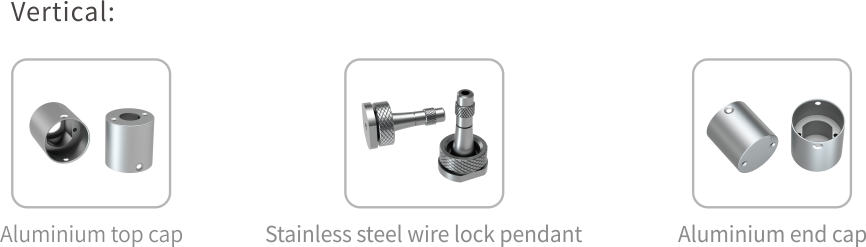

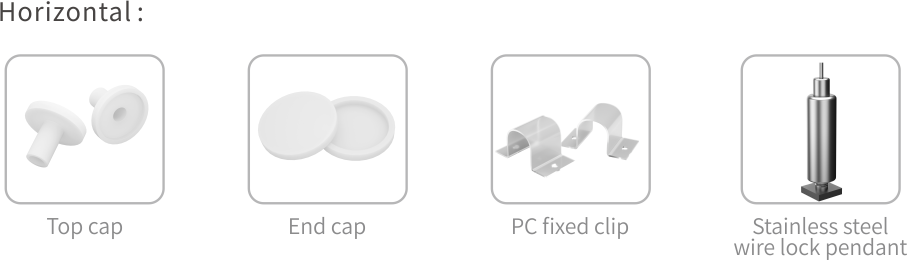

Installation Accessories
Scope of Application
Widely used in: indoor home decoration, indoor background layout and other lighting.
