STH-1010D
The product can be bent up and down, can shape different shapes; Integratedmolding package technology, superior waterproof performance;
The product can be bent up and down, can shape different shapes; Integratedmolding package technology, superior waterproof performance;
Detailed Specifications
|
Model |
STH-1010D |
|
Working voltage（V DC） |
24V DC |
|
Power（W/m） |
13W |
|
Luminous flux（lm/m） |
500-550 |
|
CCT/Color |
2200K-6000K |
|
CRI（Ra） |
>90 |
|
LED Type |
SMD 2835 |
|
LED Qty（LEDs/m） |
98 |
| Cutting length（mm） | 71.43mm |
|
Minimum bending（mm） |
100 |
|
Control mode |
Single Color |
|
Light Angle（°） |
120° |
| IP Rating（IP） | IP65~IP67 |

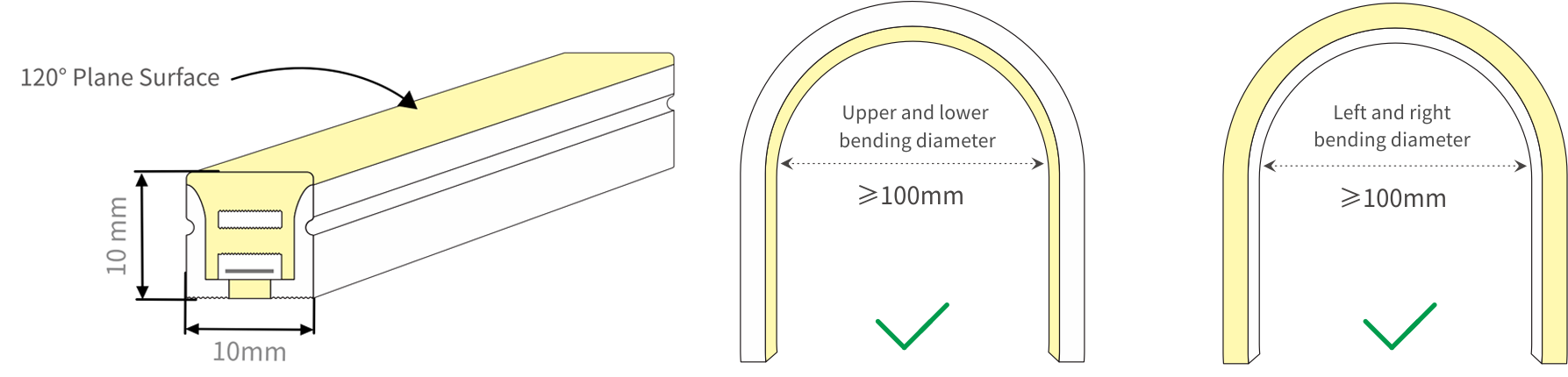

Product Dimension Diagram

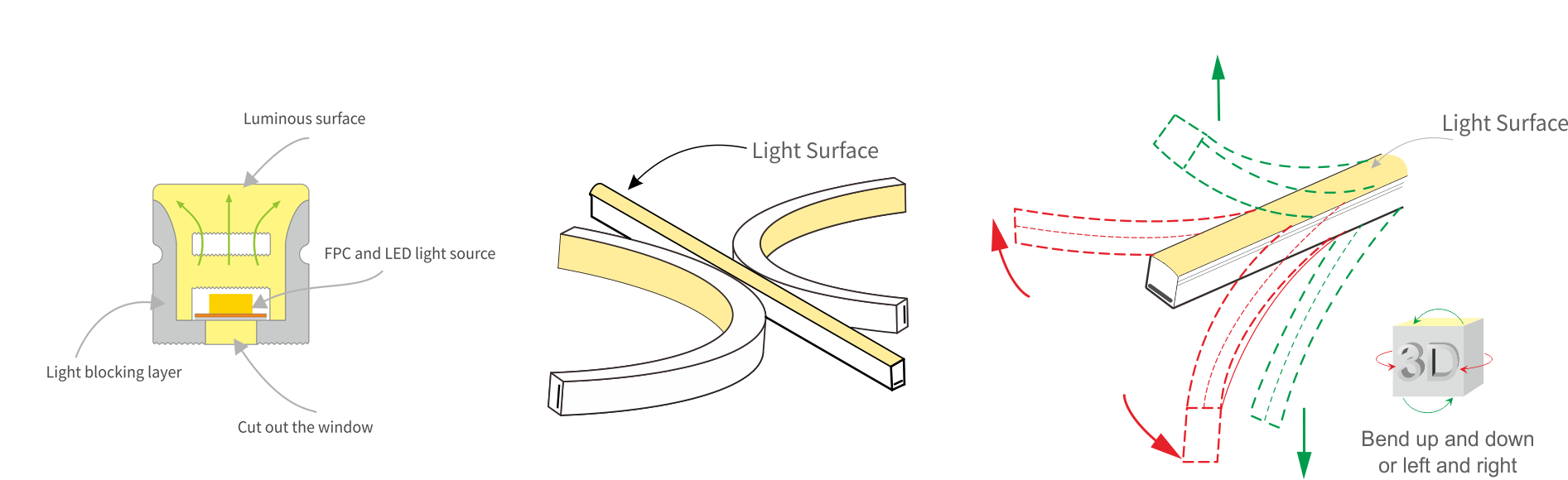

Exploded View

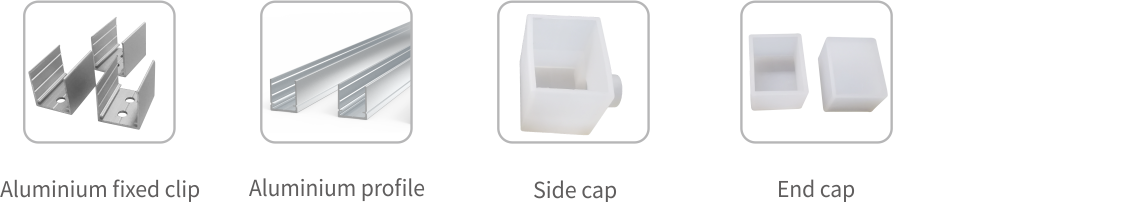

Installation Accessories
Scope of Application
Widely used in: brand stores, characteristic hotels, museums, art museums, hotels, bars, parties, building lighting, clubs, karaoke bars, stages, outdoor decoratio
Specifications
