STH-F220T950W12B-OS

· Operates directly on AC220V mains power.
· High luminous efficacy up to 115 lm/W; integrated 175° wide-angle lens for even light distribution.
· Aluminum alloy and thermally conductive aluminum plate for enhanced heat dissipation and stability.
· Supports up to 20 units in series; individually cuttable, easy installation, adjustable spacing, customizable.
· Glue-dipped waterproof construction, IP65 rated for diverse applications.

Detailed Specifications


Model
STH-F220T950W12B-OS
Voltage
AC220V
Power
12W
LED Type
SMD2835
CCT
2200K~12000K
CRI
>80
Angle
175°
Light Eff
115lm/W
Product Size 978*43.2*19.7mm (L*W*H)
Material AL+PC
LED Count
12PCS
Max. Connection 20PCS

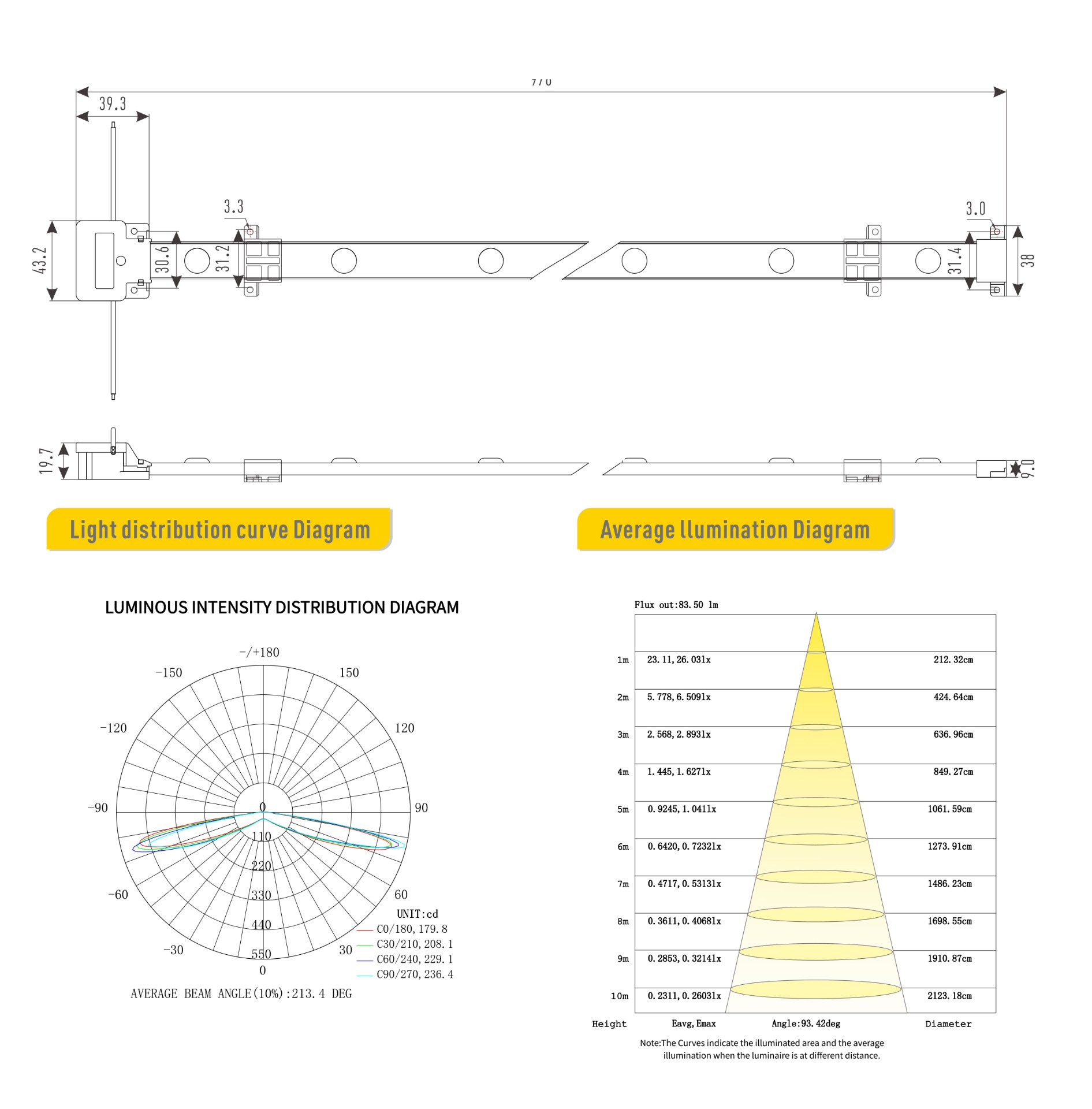

Product Dimension Diagram

Scope of Application

Widely used in advertising light boxes, stretch ceiling lighting, and more.
