· DC12V/24V low voltage for safety.
· Individually cuttable modules, adjustable spacing, customizable.
· Aluminum heat sink for improved heat dissipation and stability.
· IP65-rated waterproof construction for versatile applications.
· Integrated 20×40° elliptical dual-beam lens ensures uniform illumination.
Detailed Specifications
|
Model |
STH-F12T960x25W18B-OS |
|
Voltage |
DC12/24V |
|
Power |
18W |
|
LED Type |
SMD2835 |
|
CCT |
2200K~12000K |
|
CRI |
>80 |
|
Angle |
20*40° |
|
Light Eff |
120lm/W |
| Product Size |
963*24.8*14.4mm(L*W*H) |
| Material |
AL+PC |
|
LED Count |
18PCS |
| Max. Connection |
1PCS |

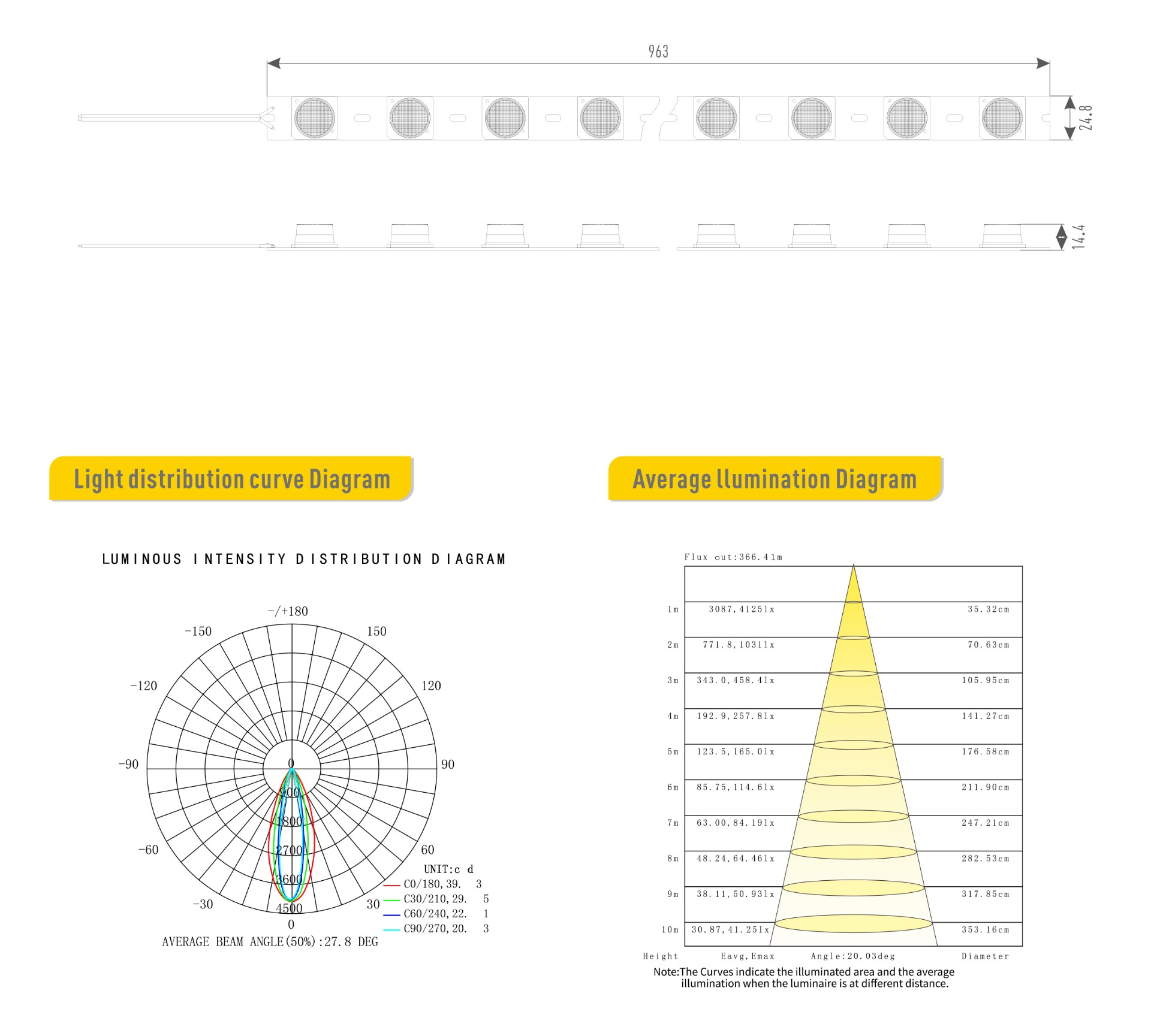

Product Dimension Diagram
Scope of Application
Widely used in advertising light boxes, stretch ceiling lighting, and more.
