· DC12V/24V low voltage for safety.
· Max. 10 units cascaded; cuttable, adjustable spacing, customizable.
· Aluminum heat sink for improved heat dissipation and stability.
· IP65-rated waterproof construction for versatile applications.
· Efficacy up to 115 lm/W; 175° wide-angle lens for uniform light.
Detailed Specifications
|
Model |
STH-F24T950CW24B-OS |
|
Voltage |
DC12/24V |
|
Power |
20W |
|
LED Type |
SMD2835 |
|
CCT |
2700K-6000K |
|
CRI |
>80 |
|
Angle |
175° |
|
Light Eff |
115lm/W |
| Product Size |
950*17*6.1mm (L*W*H) |
| Material |
AL+PC |
|
LED Count |
24PCS |
| Max. Connection |
10PCS |

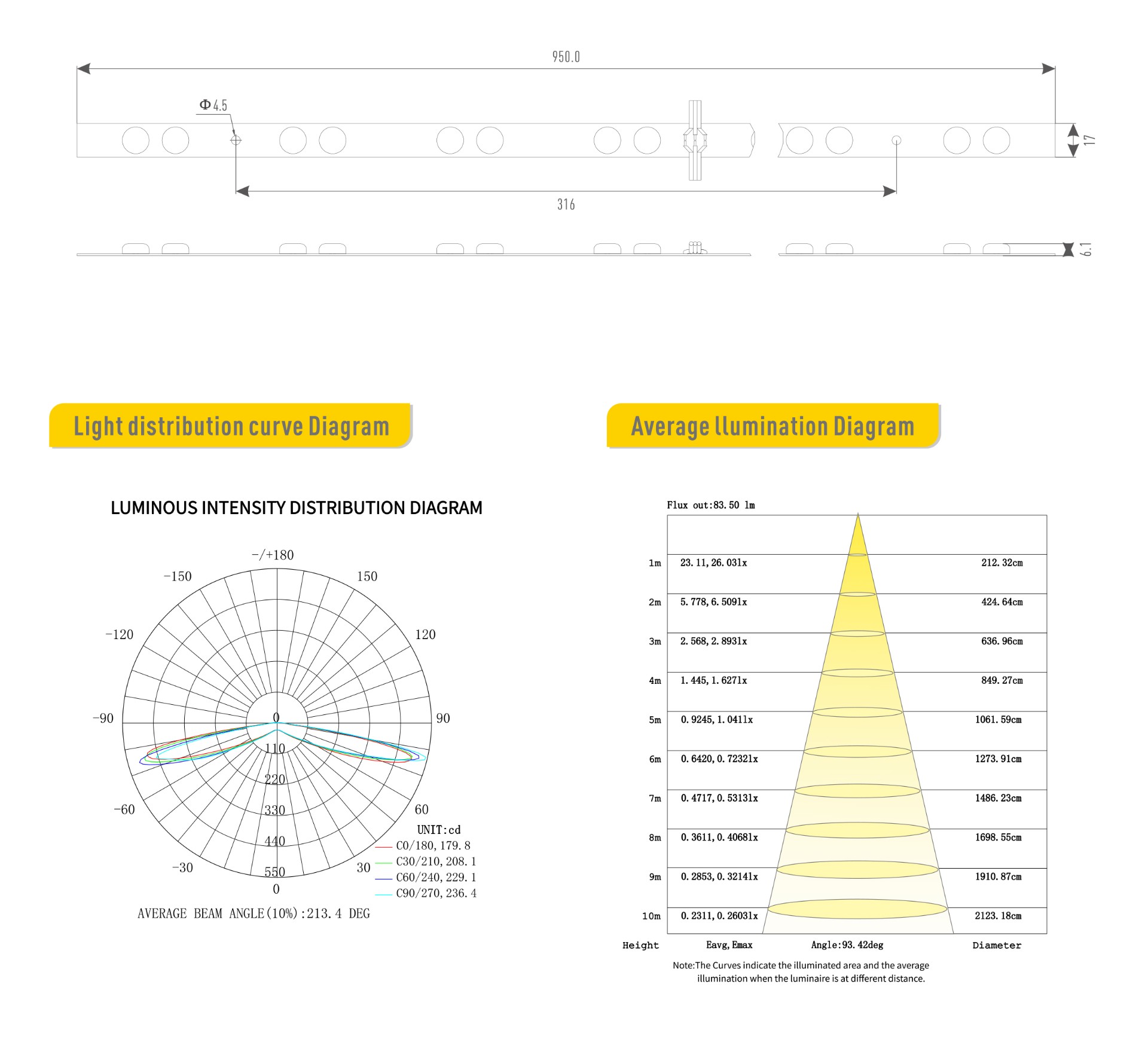

Product Dimension Diagram
Scope of Application
Widely used in advertising light boxes, stretch ceiling lighting, and more.
