·Integrated wide-angle lens (120° beam) for even light distribution .
· High luminous efficacy: up to 22 lm/W
· Reverse injection molding, IP65 rated for reliability.
· Safe DC12V low-voltage operation.
· Individually cuttable modules, adjustable spacing, customizable.
Detailed Specifications
|
Model |
STH-F12T5818W4B |
|
Voltage |
DC12V |
|
Power |
0.24W |
|
LED Type |
SMD2835 |
|
CCT |
3000K~12000K |
|
CRI |
>80 |
|
Angle |
120° |
|
Light Eff |
22 lm/W |
| Product Size |
28*7.3*4.5mm（L*W*H) |
| Material |
PVC |
|
LED Count |
2PCS |
| Max. Connection |
20PCS |

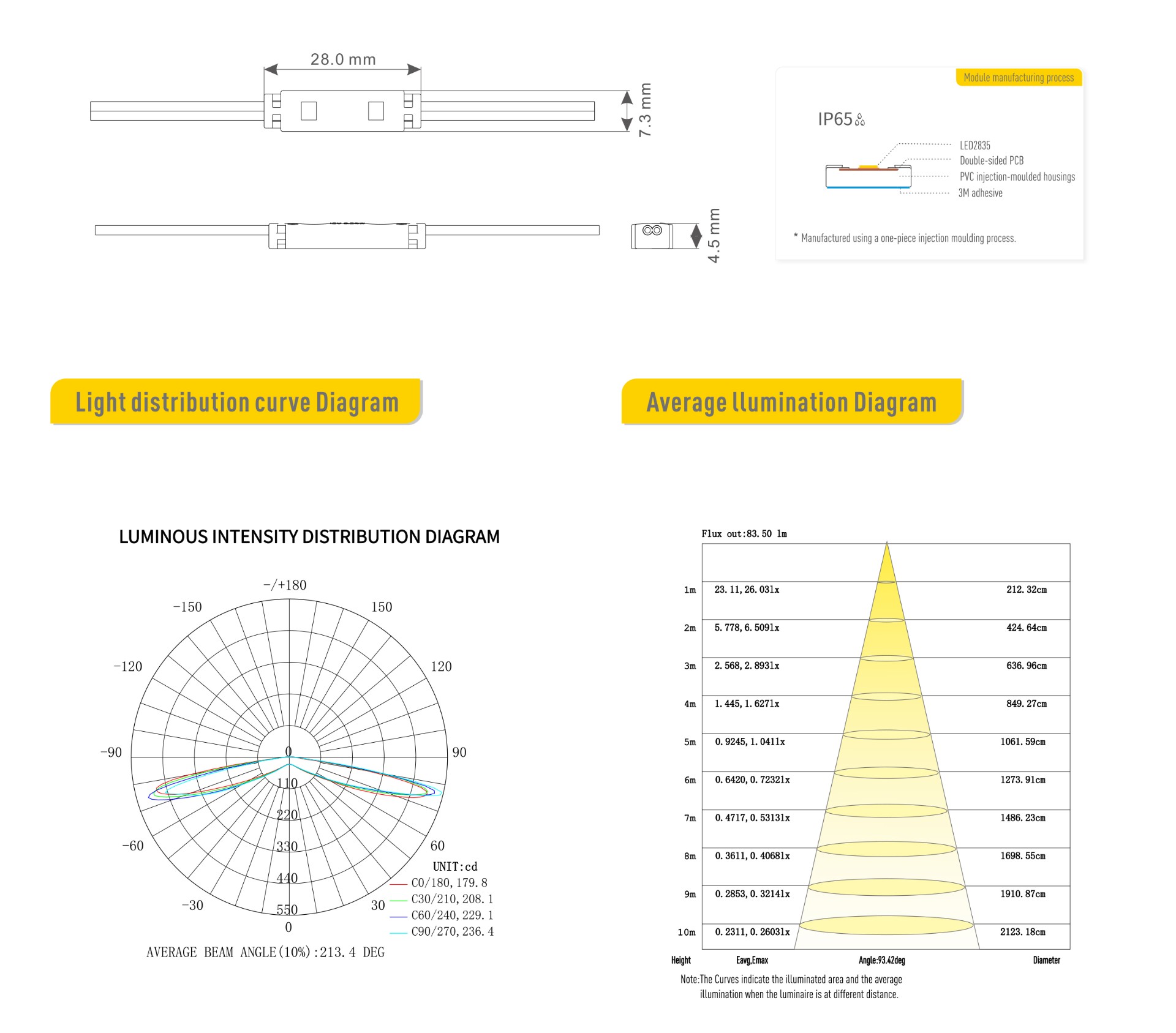

Product Dimension Diagram
Scope of Application
Ideal for ≥6cm deep light boxes, channel letters, and signage lighting
Specifications
