·Integrated wide-angle lens (120° beam) for even light distribution .
· High luminous efficacy: up to 115 lm/W.
· Reverse injection molding, IP65 rated for reliability.
· Safe DC12V/24V low-voltage operation.
· Individually cuttable modules, adjustable spacing, customizable.
Detailed Specifications
|
Model |
STH-F12T3838W4B-OS |
|
Voltage |
DC12V/24V |
|
Power |
1.44W |
|
LED Type |
SMD2835 |
|
CCT |
3000K~12000K |
|
CRI |
>80 |
|
Angle |
160° |
|
Light Eff |
115 lm/W |
| Product Size |
43*38*6.5mm (L*W*H) |
| Material |
PVC+PC |
|
LED Count |
4PCS |
| Max. Connection |
20PCS |

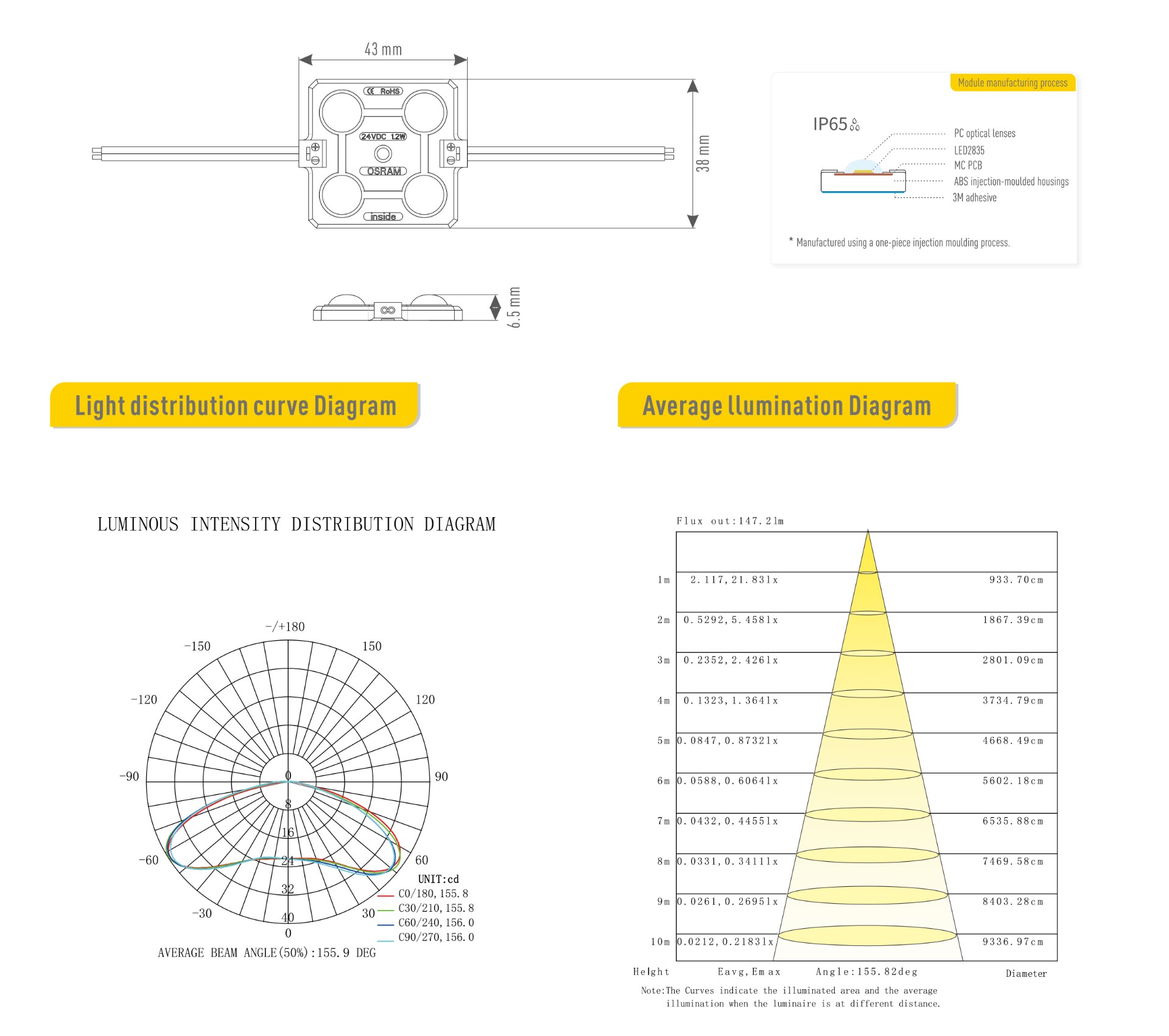

Product Dimension Diagram
Scope of Application
Ideal for ≥6cm deep light boxes, channel letters, and signage lighting
Specifications
Address：5th Floor, Building C, Mingjinhai First Industrial Park, Shiyan, Bao'an District, Shenzhen
Phone number：+86 199 2872 8373
Email：729355534@qq.com
Fax：+86 199 2872 8373
English
sth-f12t3838w4b-os-specification-en.pdf
