·Integrated wide-angle lens (160° beam) for even light distribution .
· High luminous efficacy: up to 105 lm/W.
· Reverse injection molding, IP65 rated for reliability.
· AC110/220V, supports series connection of multiple modules, max cascade of 40PCS.
· Individually cuttable modules, adjustable spacing, customizable.
Detailed Specifications
|
Model |
STH-F110T8820W3B |
|
Voltage |
AC110220V |
|
Power |
1.8W |
|
LED Type |
SMD2835 |
|
CCT |
3000K~12000K |
|
CRI |
>80 |
|
Angle |
160° |
|
Light Eff |
105lm/W |
| Product Size |
88.5*21*7.6mm (L*W*H) |
| Material |
PVC+PC |
|
LED Count |
3PCS |
| Max. Connection |
40PCS |

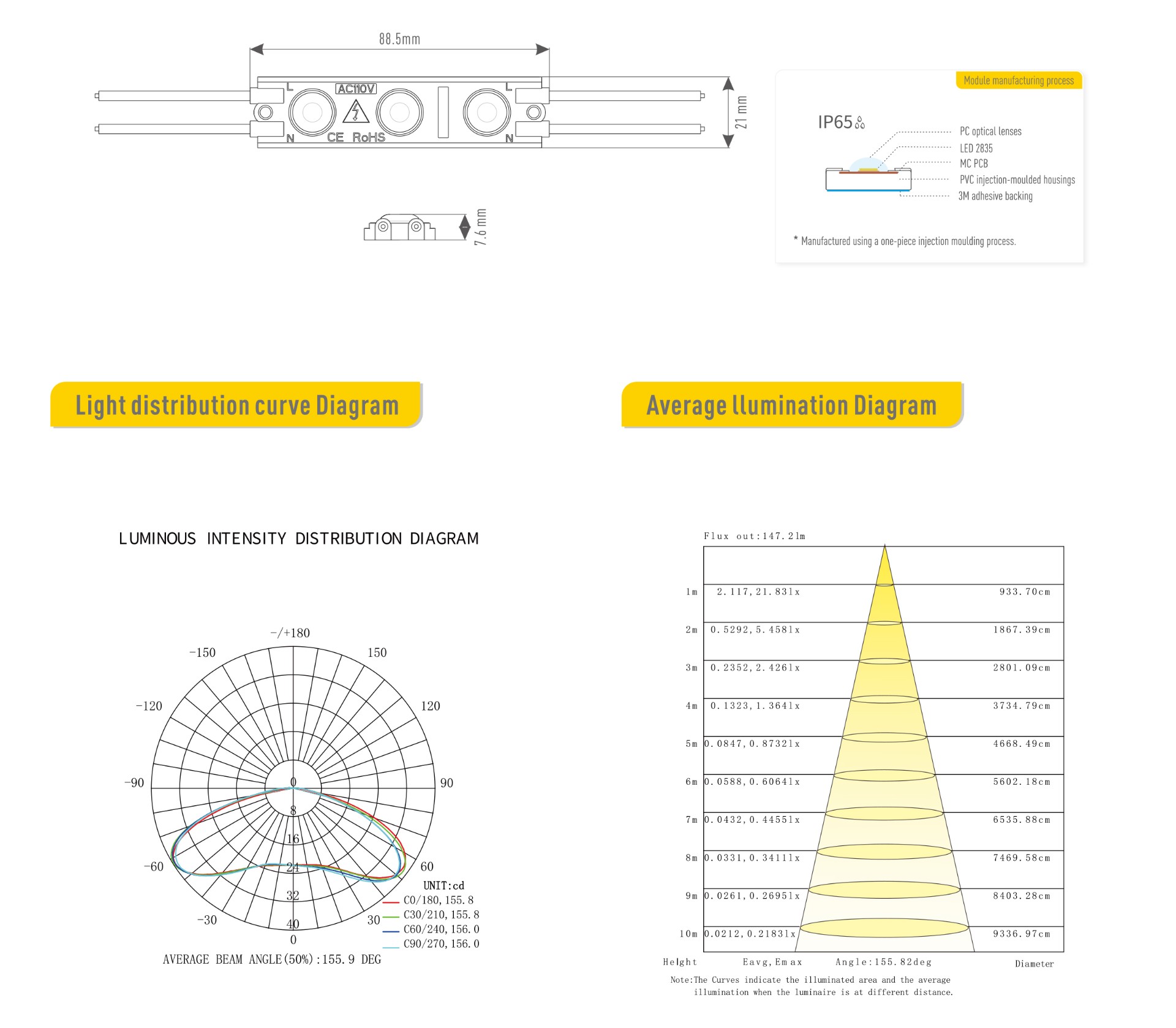

Product Dimension Diagram
Scope of Application
Ideal for ≥6cm deep light boxes, channel letters, and signage lighting
