·Integrated wide-angle lens (175° beam) for even light distribution.
· High luminous efficacy: up to 180 lm/W.
· Reverse injection molding, IP67 rated for reliability.
· Safe DC12V/24V low-voltage operation.
· Individually cuttable modules, adjustable spacing, customizable.
Detailed Specifications
|
Model |
STH-F12T7818W3B |
|
Voltage |
DC12/24V |
|
Power |
1.08W |
|
LED Type |
SMD2835 |
|
CCT |
3000K~12000K |
|
CRI |
>80 |
|
Angle |
175° |
|
Light Eff |
180lm/W |
| Product Size |
78*18*10.3mm (L*W*H) |
| Material |
PVC+PC |
|
LED Count |
3PCS |
| Max. Connection |
20PCS |

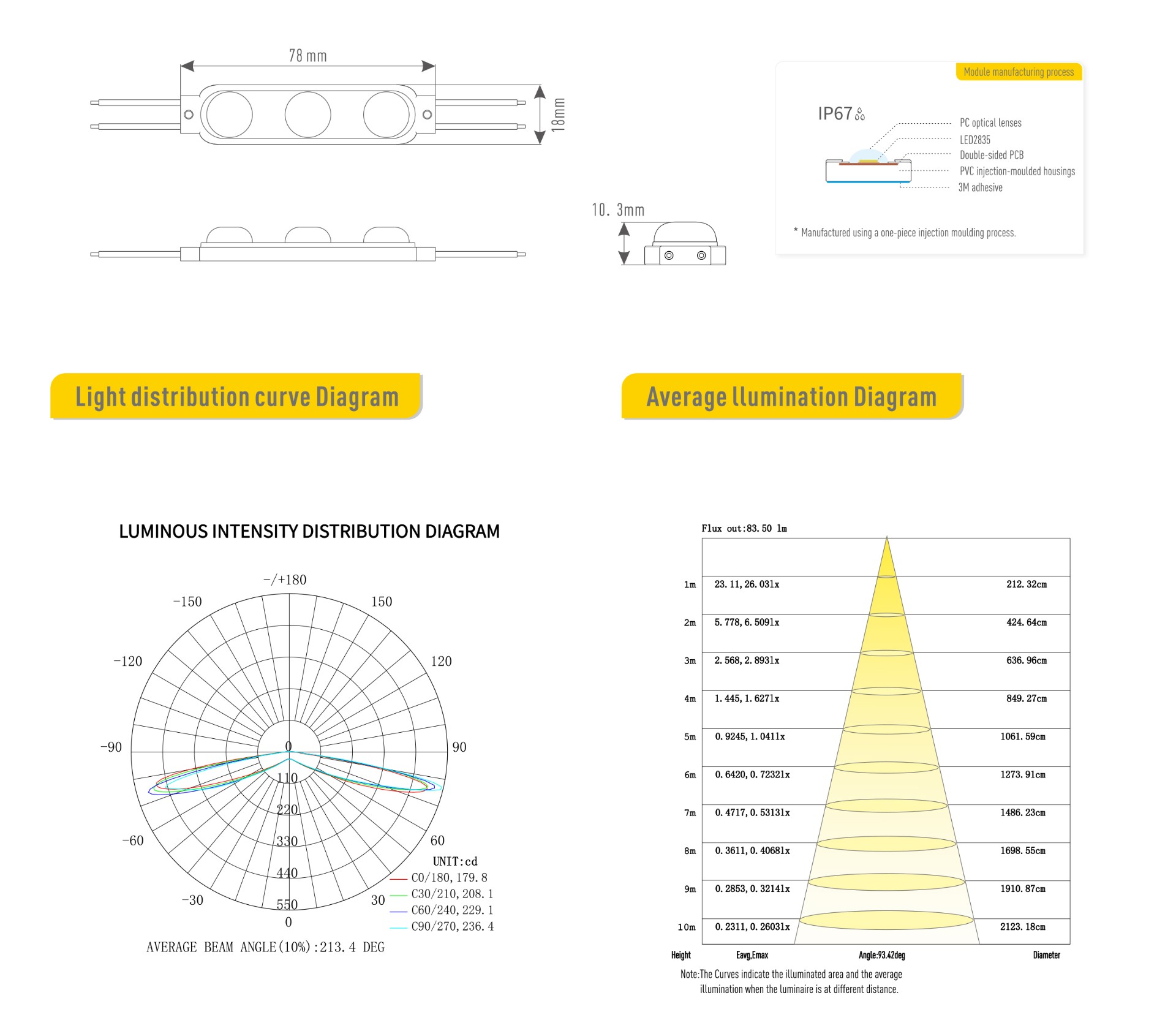

Product Dimension Diagram
Scope of Application
Ideal for ≥6cm deep light boxes, channel letters, and signage lighting
Specifications
