·Integrated wide-angle lens (175° beam) for even light distribution.
· High luminous efficacy: up to 115 lm/W,2700–6000K CCT adjustable.
· Reverse injection molding, IP65 rated for reliability.
· Safe DC24V low-voltage operation.
· Individually cuttable modules, adjustable spacing, customizable.
Detailed Specifications
|
Model |
STH-F24T6868CW8B-OS cct |
|
Voltage |
DC24V |
|
Power |
6W |
|
LED Type |
SMD2835 |
|
CCT |
2700K~6000K |
|
CRI |
>80 |
|
Angle |
175° |
|
Light Eff |
115lm/W |
| Product Size |
68*68*6.1mm (L*W*H) |
| Material |
AL+PC |
|
LED Count |
8PCS |
| Max. Connection |
20PCS |

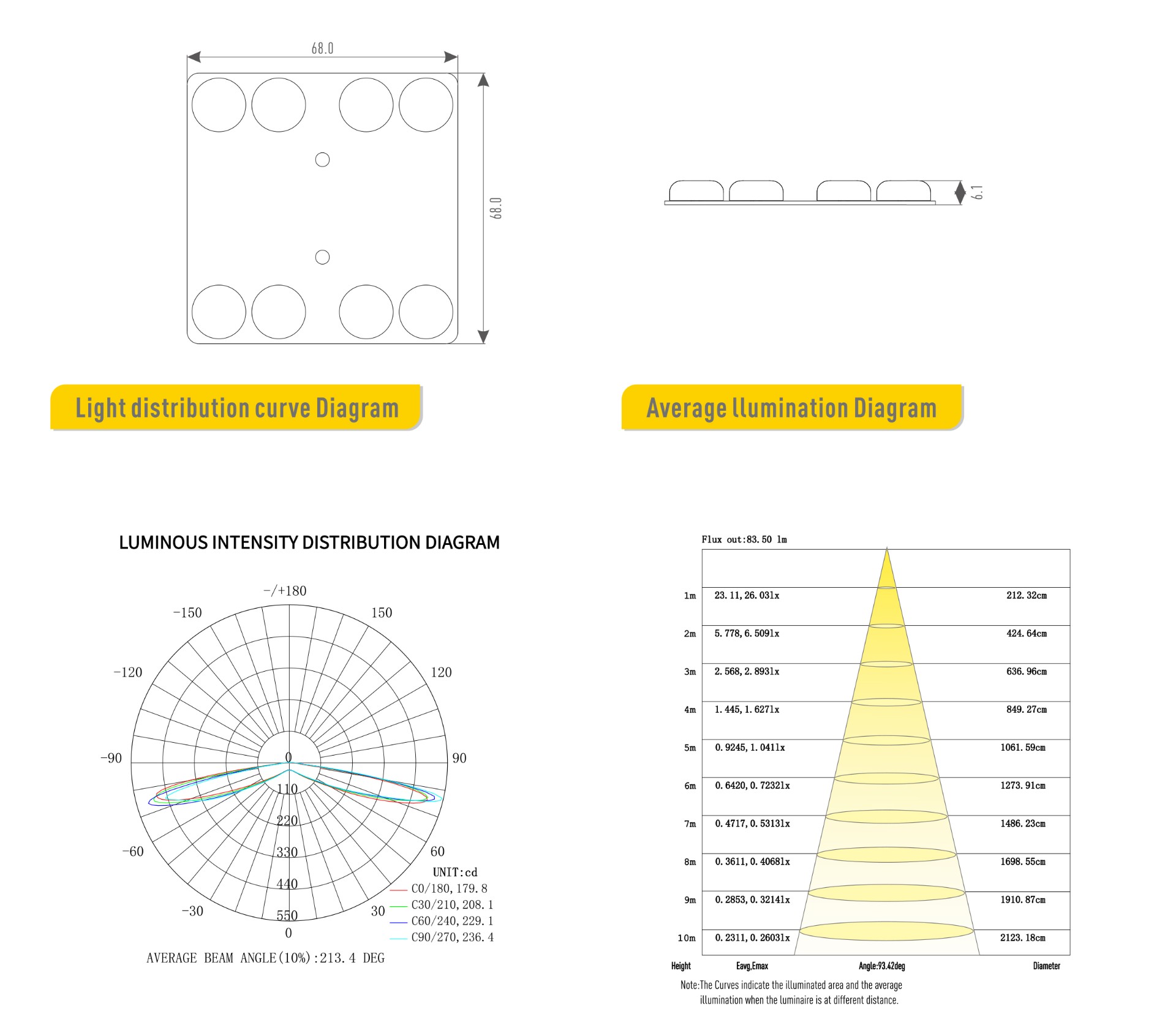

Product Dimension Diagram
Scope of Application
Ideal for ≥6cm deep light boxes, channel letters, and signage lighting
