·Integrated wide-angle lens (175° beam) for even light distribution.
· High luminous efficacy: up to 120 lm/W.
· Reverse injection molding, IP65 rated for reliability.
· Safe DC24V low-voltage operation.
· Individually cuttable modules, adjustable spacing, customizable.
Detailed Specifications
|
Model |
STH-F24T6868WB-OS1 |
|
Voltage |
DC24V |
|
Power |
4W |
|
LED Type |
SMD2835 |
|
CCT |
2700K-12000K |
|
CRI |
>80 |
|
Angle |
175° |
|
Light Eff |
120lm/W |
| Product Size |
85.8*71.3*7.4mm (L*W*H) |
| Material |
AL+PC |
|
LED Count |
4PCS |
| Max. Connection |
20PCS |

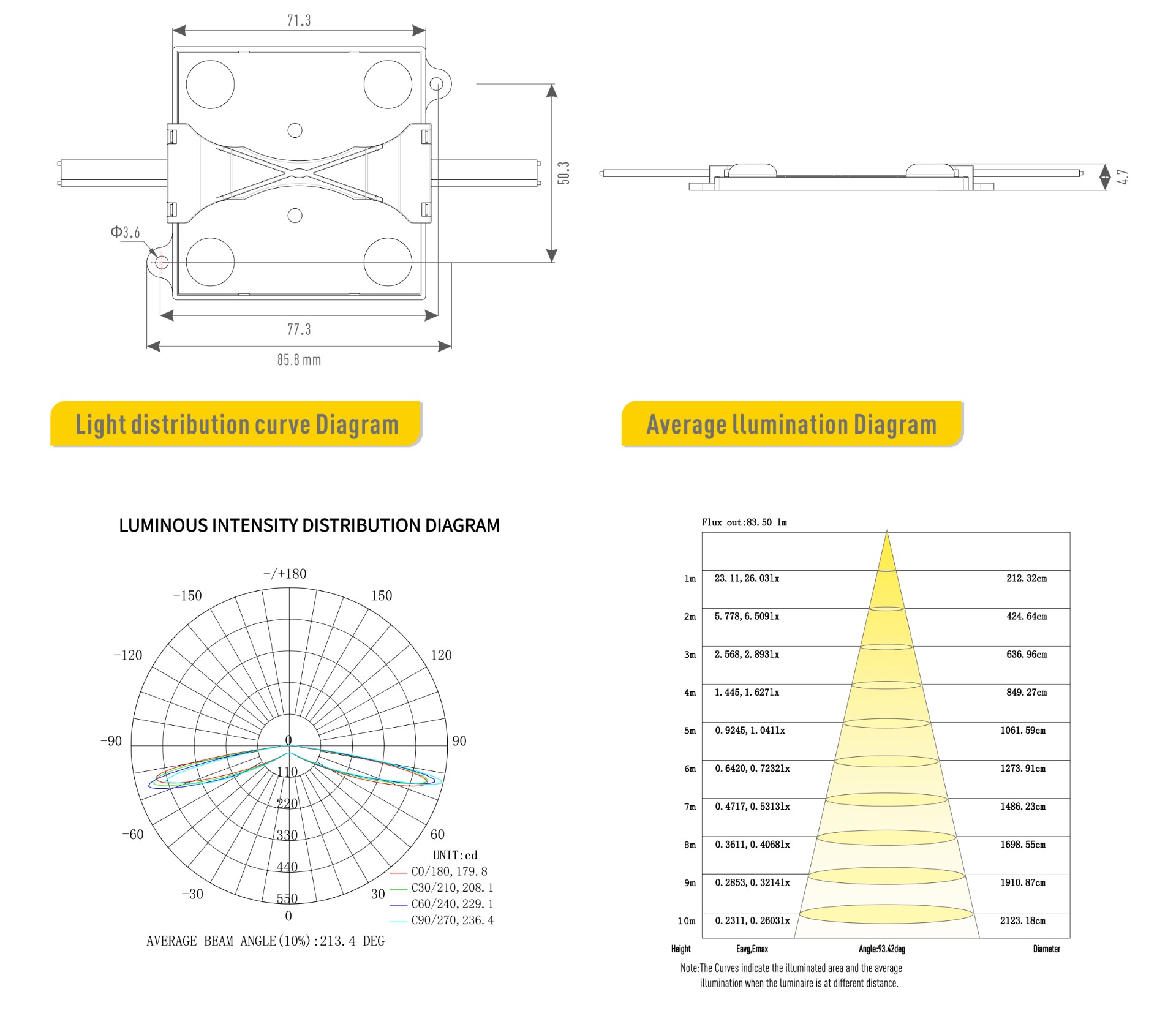

Product Dimension Diagram
Scope of Application
Ideal for ≥6cm deep light boxes, channel letters, and signage lighting
Specifications
