· DC12V/24V low voltage for safety.
· Individually cuttable modules, adjustable spacing, customizable.
· Aluminum heat sink for improved heat dissipation and stability.
· Optional surface waterproofing with IP20/IP65 ratings available.
· Integrated 10*35° elliptical dual-beam lens ensures uniform illumination.
Detailed Specifications
|
Model |
STH-F24T990x25W20B-OS |
|
Voltage |
DC12/24V |
|
Power |
40W |
|
LED Type |
SMD3535 |
|
CCT |
2700K-12000K |
|
CRI |
>80 |
|
Angle |
10*35° |
|
Light Eff |
92lm/W |
| Product Size |
950*25*13mm (L*W*H) |
| Material |
AL+PC |
|
LED Count |
20PCS |
| Max. Connection |
1PCS |

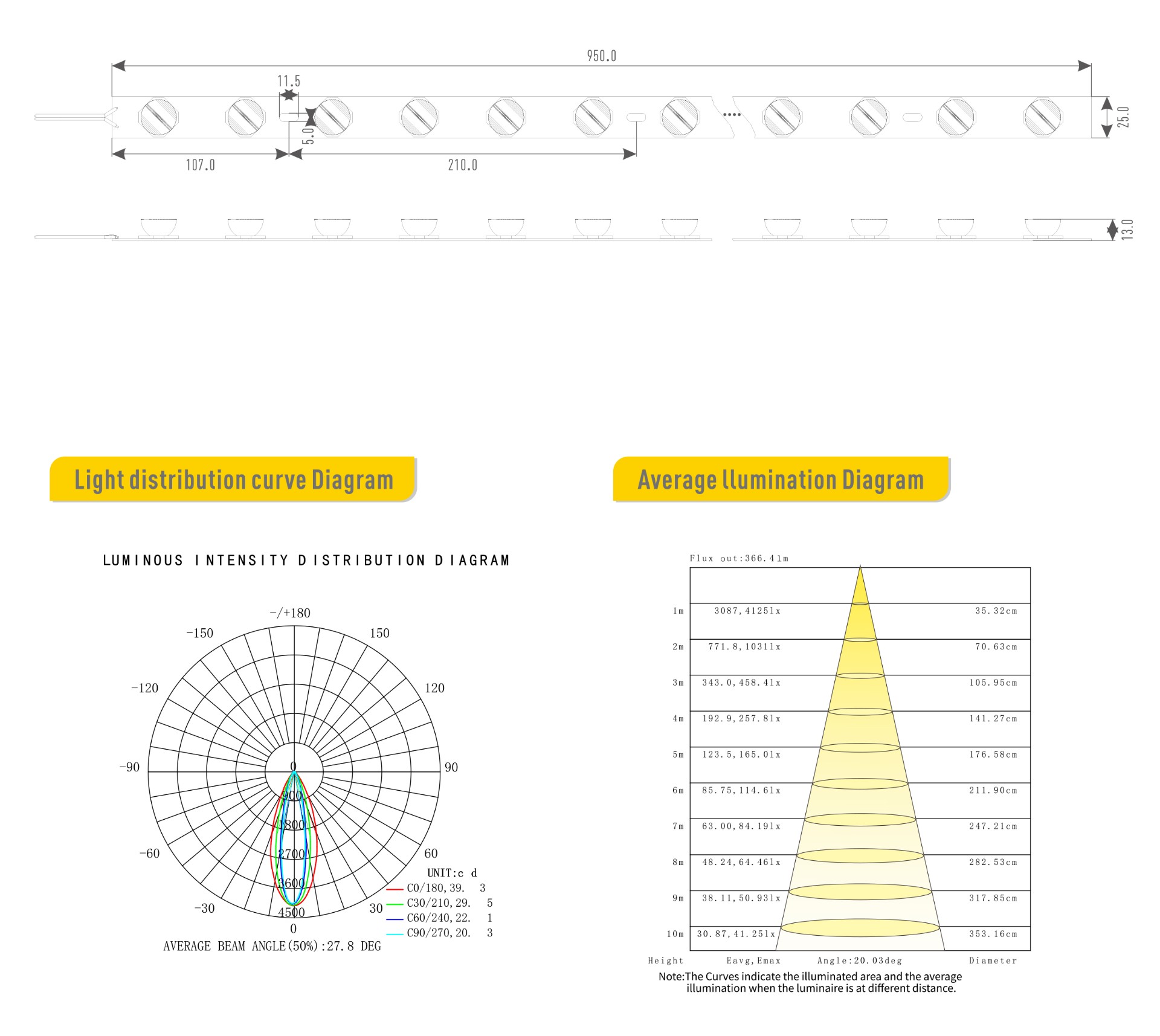

Product Dimension Diagram
Scope of Application
Widely used in advertising light boxes, stretch ceiling lighting, and more.
Specifications
