The cutting line made by two-color silicone co-extrusion technology, the cutting line clear and easy to cut. It is UV resistance, flame resistance, solvents resistance, and saltwater resistance. Applicable to indoor, home, etc. According to the flexible characteristics of products, any different shapes can be outlined.
Detailed Specifications
|
Model |
STH-0612 |
|
Working voltage（V DC） |
12 / 24V DC |
|
Power（W/m） |
11W / 14.4W |
|
Luminous flux（lm/m） |
480-530 |
|
CCT/Color |
2200K-6000K R G B Y |
|
CRI（Ra） |
>90 |
|
LED Type |
SMD 2835 SMD 3838 |
|
LED Qty（LEDs/m） |
126(Single Color) / 240(Adjustable CCT) / 84(RGB) |
|
Cutting length（mm） |
23.8/55.5(Single Color) 25/50(Adjustable CCT) 35.7/71.4(RGB) |
|
Minimum bending（mm） |
100 |
|
Control mode |
Single Color/Adjustable CCT/RGB |
|
Light Angle（°） |
120° |
|
IP Rating（IP） |
IP67 |

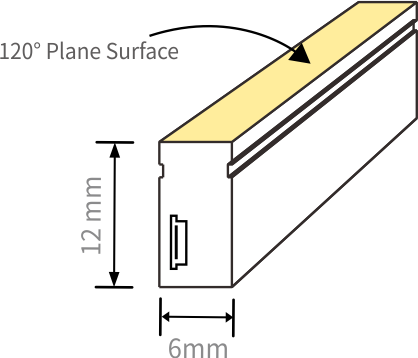

Product Dimension Diagram

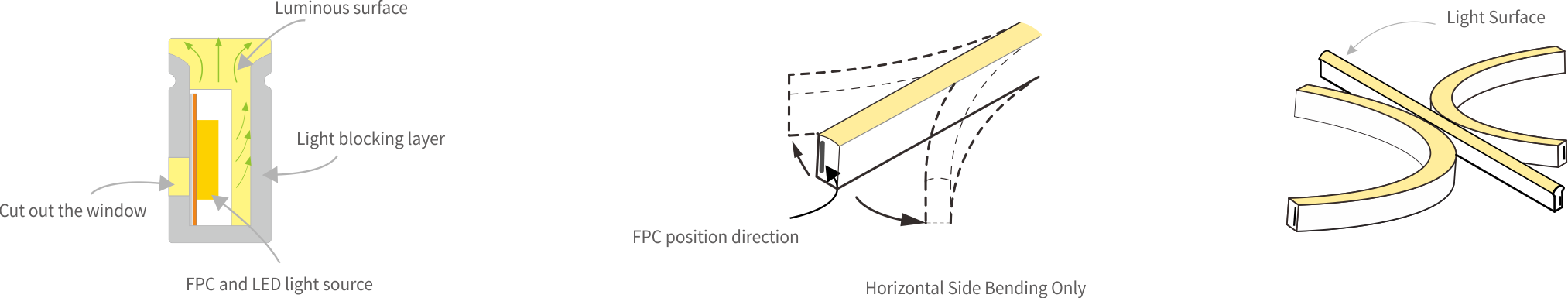

Exploded View

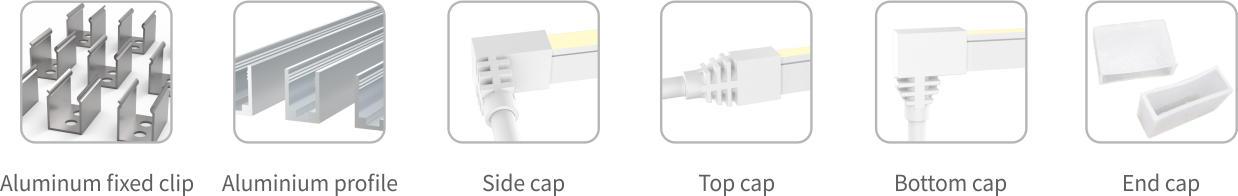

Installation Accessories
Scope of Application
Widely used in indoor home decoration, jewelry, precious clocks and shopping mall counters,cosmetics counters, indoor background layout and other lighting.
