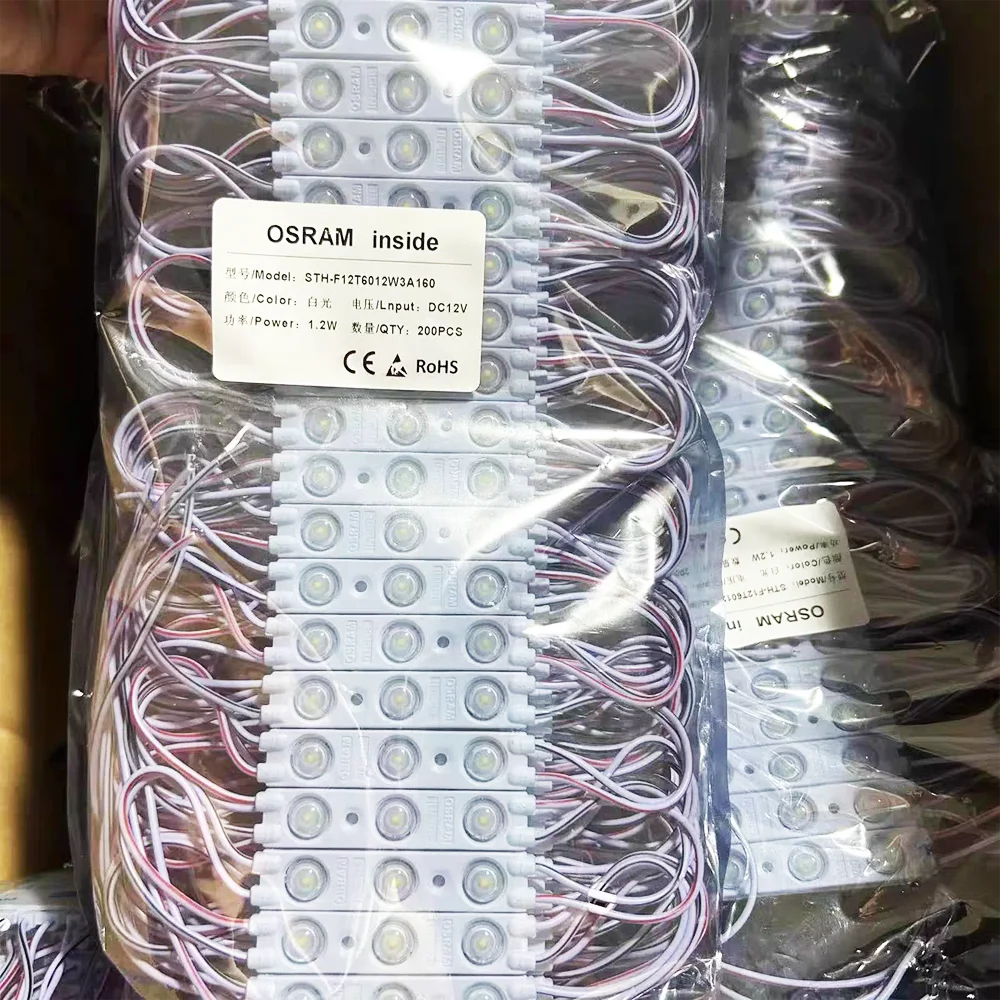

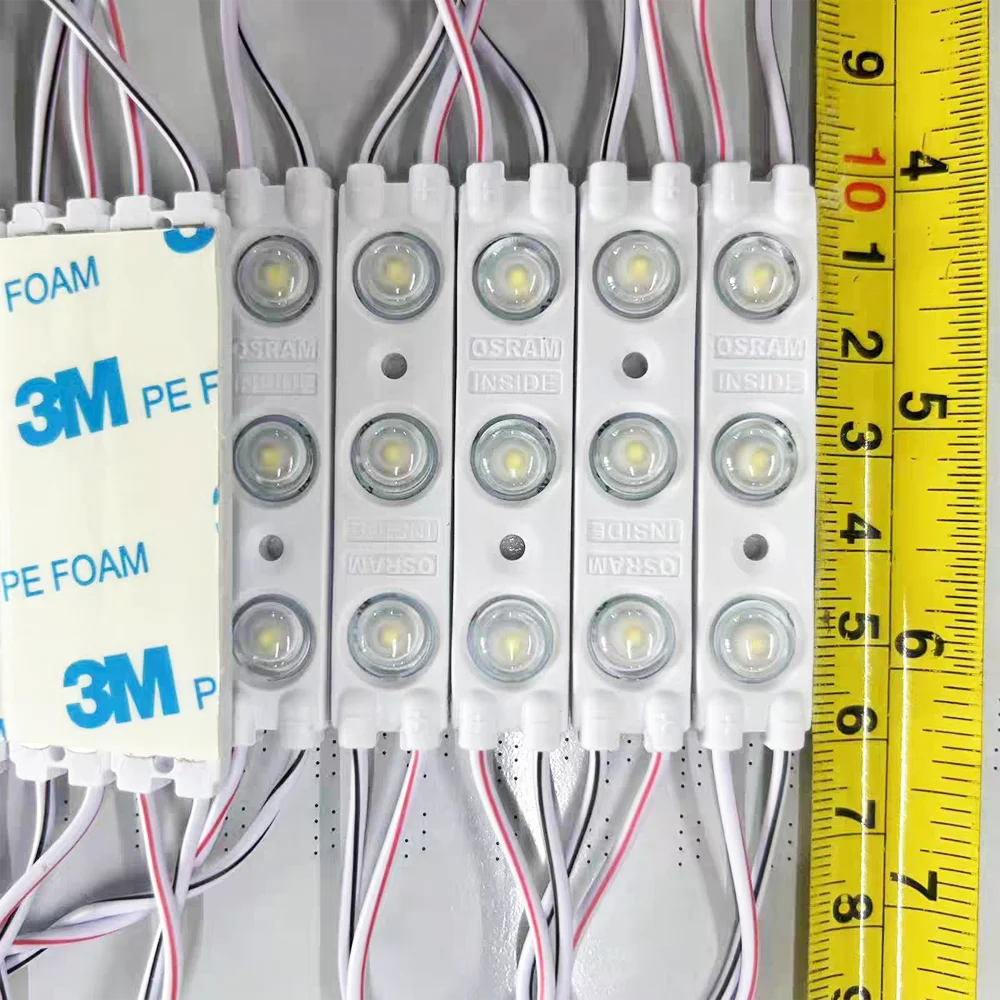

Product details:
1. OSRAM smd2835 led inside
2. 1.0MM Thick Aluminium PCB for good heat sinking
3. Power:1.2w ,Voltage 12Volt ,Brightness:80LM
4. 35000 hours Long lifespan, 3 years’ warranty
5. Driven by constant voltage
6. 160degrees Wide angle lens & optical lens , uniformity is very good!
7. Backlighting for single sided light box lighting, Cost effective for light box whose depth from 60-200mm depth
Electrical characteristics:
| Model No. | STH-F12T6012W3A160 |
| LED Type | SMD 2835 OSRAM led |
| Viewing angle | 160 degree |
| Emitting color | warm white/nature White/pure white |
| luminous flux | 120lm |
| Color temperature | 3000k,4500k,6500 kelvin |
| Operating Temperature | 12v DC |
| warranty | 3 years |
| Power consumption | 0.72Watt |
Physical Parameters:
| LED number | 3pcs |
| pcs per link | 20pcs |
| IP Grade | IP65 |
| Shell material | ABS injection fire reterdant |
| Driven by | constant voltage |
| Positioning | Screw&Autoadhesive 3M Tape |
| Operating temperature | -30°c —+60 °c |
Storage Temperature | -40°c —+60 °c |
Application:
a. Widely Used in Household Lighting.

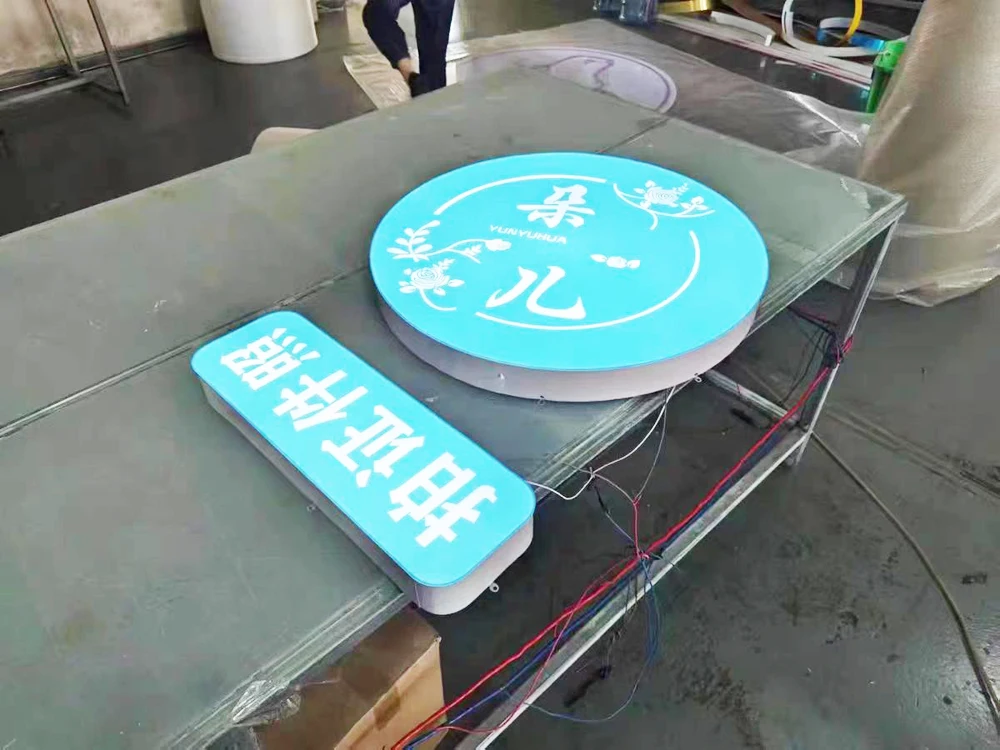

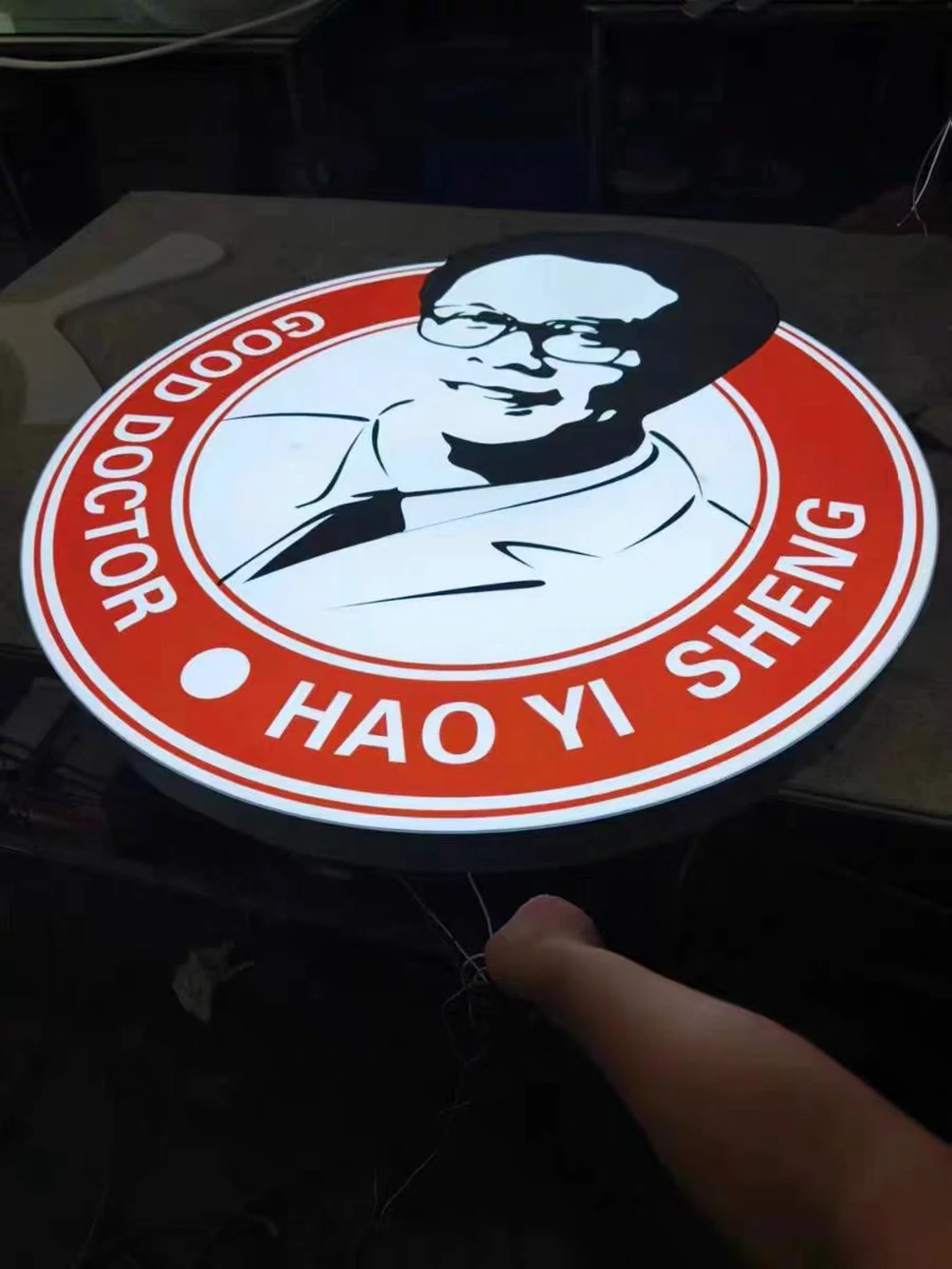

b. Backlighting for Advertisement ,Signboard and Billboard.
c. Backlighting for Lightingbox .

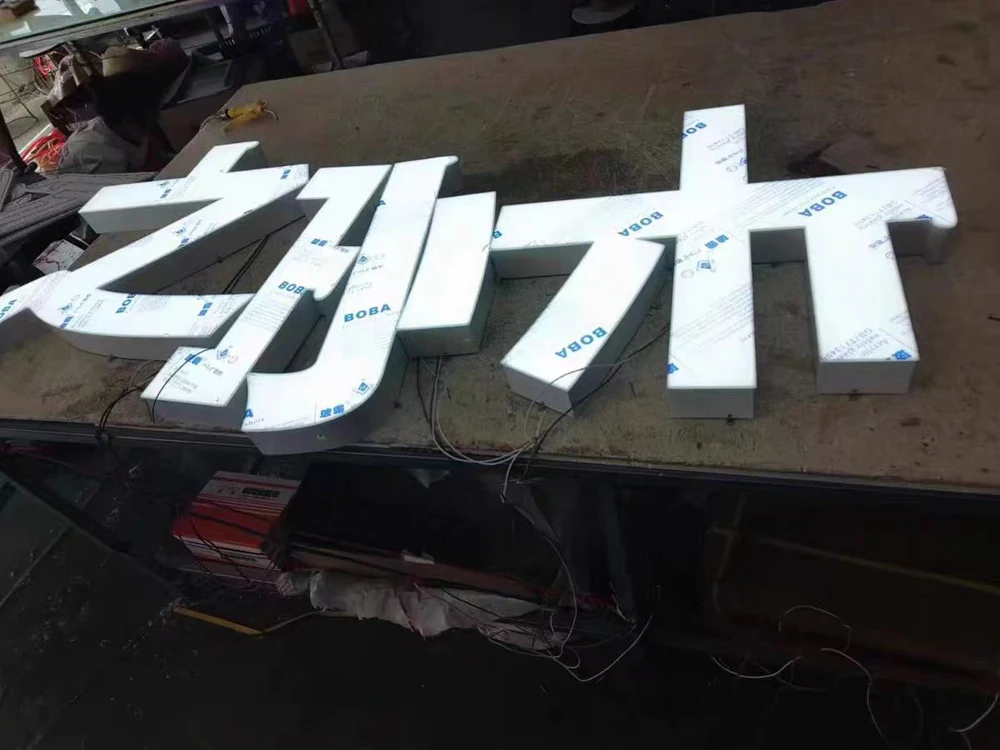

d. Signal Lamp for Letter Channel.
e. Emergency / rescue signs
