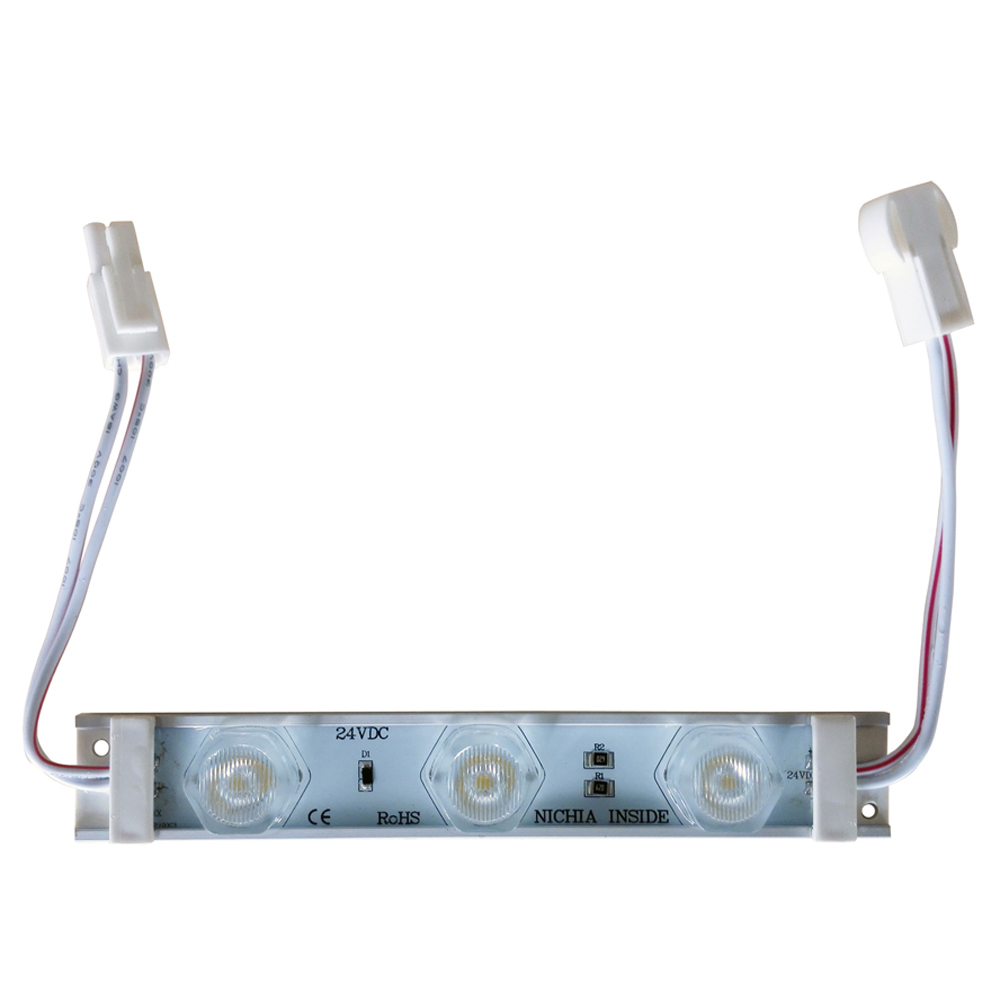

NICHIA 3.6W Edge-Lit LED Light Bar For Double-sided Light boxes
| Product name: Nichia Edge-Lit LED Bar | Application:For double-side sign box illumination |
| LED type: NICHIA SMD3030 LEDs 1.0Watt | LED quantity: 3pcs |
| Physical dimension:14mm (L)*21.5mm (W)*11.5mm (H) | Operating voltage: 24VDC |
| Storage Temperature:-50℃~80℃ | Color Rendering Index (CRI): 80 |
| Power consumption: 3.6W/PCS | Operating temperature: -40℃~60℃ |
| Emitting color: Pure White/ Warm White | Luminous output each color:360LM/pcs |
| Beam angle: 45º*15º | Life span: 50000 Hours |
| Protection grade: IP65 | Driven mode: Constant voltage |
| Weight:0.018KG | Package: 1000pcs per inner carton, 2 cartons in 1 box |
| Quantity to illuminate each ㎡ evenly: 6pcs | Material: Silicone Glue & Aluminum PCB |
| Depth/Thickness of Signs: 6~12cm |
