TaionLED Lighting
Electrical characteristics:
| Model No. | STH-F24P600W1L24B95 |
| LED Type | OS-RAM smd2835 1.0W Led*24 |
| Beam angle | 175 degree |
| Emitting color | WARM EEHITR ,PURE White,NATURE WHITE |
| luminous flux | 2000lm |
| Color temperature | 6500k&3000K |
| Operating Temperature | 24vDC |
| Operating Current | 150MA |
| Power | 20Watt |
Physical Parameters:
| LED number | 24pcs |
| pcs per link | 10pcs |
| IP Grade | IP65 WATERPROOF & IP20 nonwaterproof |
| Shell material | ALUMINUM PCB &SILICONE Cover |
| Driven by | constant VOLTAGE 24vdc |
| Positioning | Screw&Autoadhesive Tape |
| Operating temperature | -30°c —+60 °c |
Storage Temperature | -40°c —+60 °c |
Product characteristics:
1.Powered by OSRAM SMD28351.0Watt led*24PCS(12PCS 6500K+12PCS 3000K)
2.Aluminium base for good heat sinking
3.Brightness:2000LM
4.Driven by constant voltage 12V/24vdc
5.If powered maximun 12 hours a day,5 years warranty

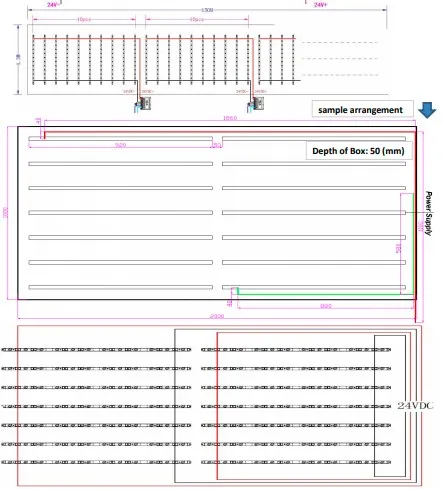

6.Application:Backlighting for display case,channels letter depth is 50-300mm
Application
a. Widely Used in Household Lighting.
b. Backlighting for Advertisement ,Signboard and Billboard.
c. Backlighting for Lightingbox .
d. backlight for Letter Channel.
e. backlight for ceiling light
