LED Module/

3W Osram 4 LED Module 180°

  • STH-F12T5042W4A-180OS
  • Product ID: 3.0W OSRAM LED Module
  • LED Chip: high quality 2835 LED OSRAM
  • Lumens:360LM/PCS
  • Lens:  optical lens processing 180degrees
  • Material: Aluminum PCB &  IP65
  • High efficacy up to 130lm/W
  • CE RoHS UL approved

  • Product Details

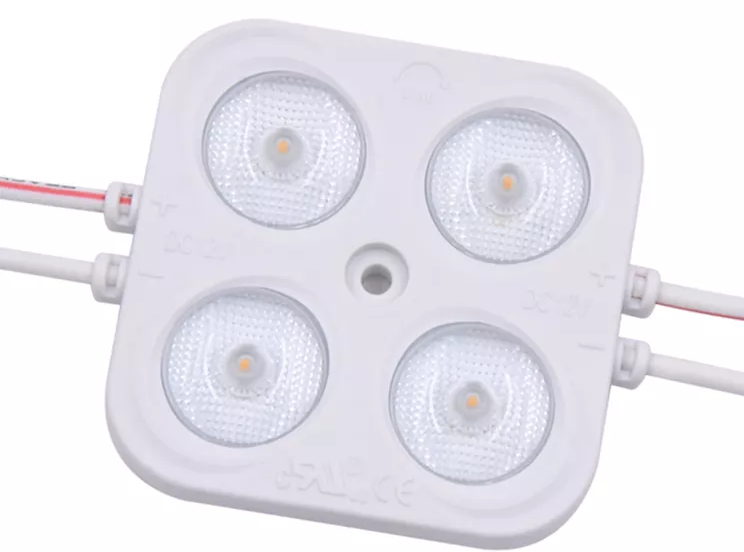

12V 180° OSRAM 3W 4 LED Module Light for Boxes Signs

Product name: 12VDC 4 LED Osram Module 180°Application:For letter & sign box illumination
LED type: OSRAM SMD2835LEDs 1.0WattLED quantity: 4pcs

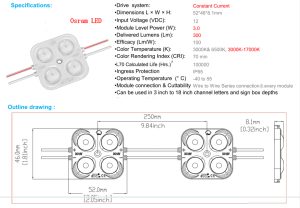

Physical dimension:50mm (L)*42mm (W)*8mm (H)Operating voltage: 12VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 3.0W/PCSOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:320LM/pcs
Beam angle: 180º(Special Angle)Life span: 50000 Hours
Protection grade: IP65Driven mode: Constant voltage
Weight:0.019KGPackage: 200pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  15pcsMaterial: Aluminum PCB & diffuse Lens 180°
Depth/Thickness of Signs:  100~200mm
