LED Module/

Edge-Lit 3W Led Module

  • Item: F12P600W1L70
  • Product ID: 2.8W High Lumen LED Edge-lit Module
  • LED Chip: high quality 3535 OSRAM LED
  • Lumens:250LM/LED
  • Lens: Diffuse reflection optical processing 56*12degrees
  • Material: Aluminum PCB & ABS injection
  • High efficacy up to 120lm/W
  • Waterproof IP65

  • Product Details
  • Module Dimension

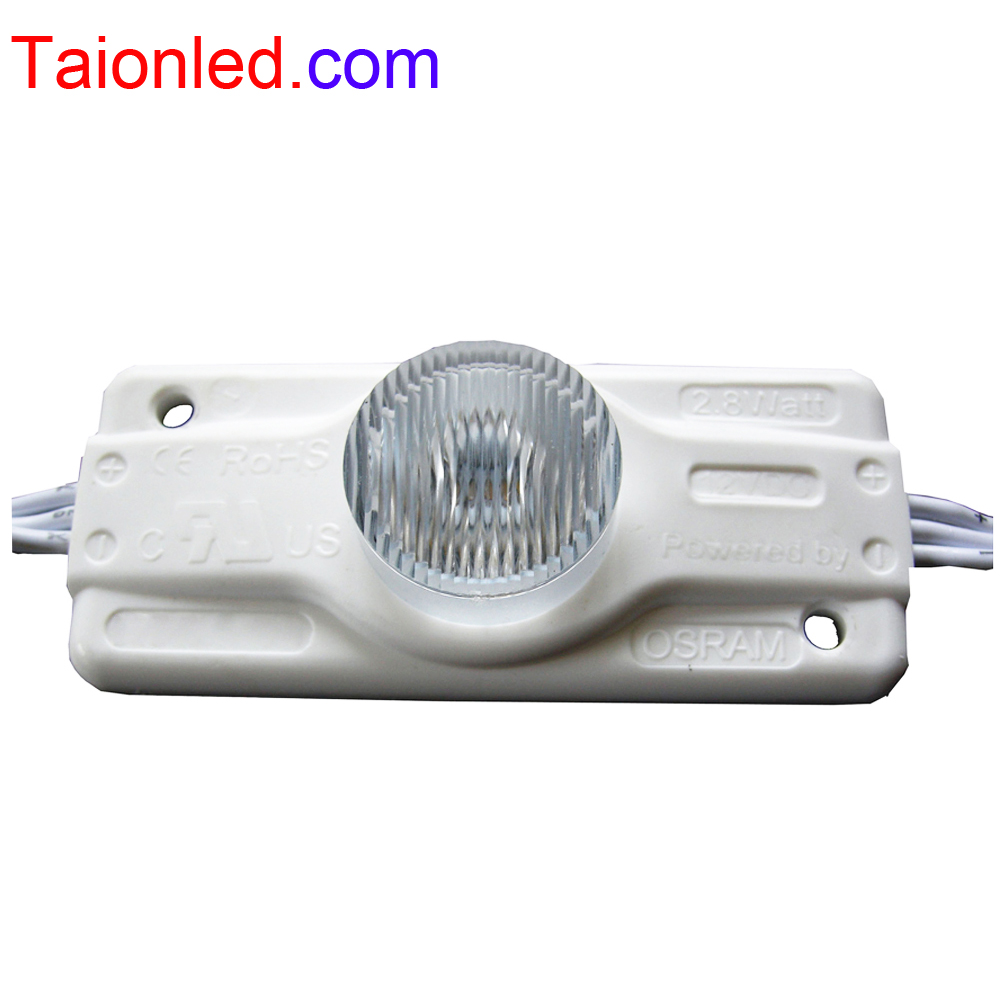

Single 2.8W LED Module Edge Emitting For Double-sided Light Boxes

Product name: 2.8W Edge-Lit Single LED ModuleApplication:For Double-sided sign box illumination
LED type: Osram SMD3535 3.0WattLED quantity: 1pcs
Physical dimension:70mm (L)*30mm (W)*11mm (H)Operating voltage: 12VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 2.8W/LEDOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:1250LM/pcs
Beam angle: 56º*12ºLife span: 50000 Hours
Protection grade: IP65Driven mode: Constant Voltage
Weight:0.027KGPackage: 450pcs per inner carton, 2 cartons in 1
Quantity to illuminate each  evenly:  12pcsLumens/㎡: 2900LM
Depth/Thickness of Signs:  12~20cm


Size: 70MMx30MMx11MM

Edge/side Lighting for Double-sided Lightboxes
