LED Module/

110VAC 220VAC 3 LED Module Injection

  • No Need Power Supply
  • STH-F220T8015W3A-160
  • Product ID: 1.6W AC LED Module 220V
  • LED Chip: high quality Top 2835 LED Epistar
  • Lumens:160LM/PCS
  • Lens:  optical lens processing 160degrees
  • Material: FR4 PCB & Silicone IP65
  • High efficacy up to 120lm/W
  • CE RoHS approved

  • Product Details

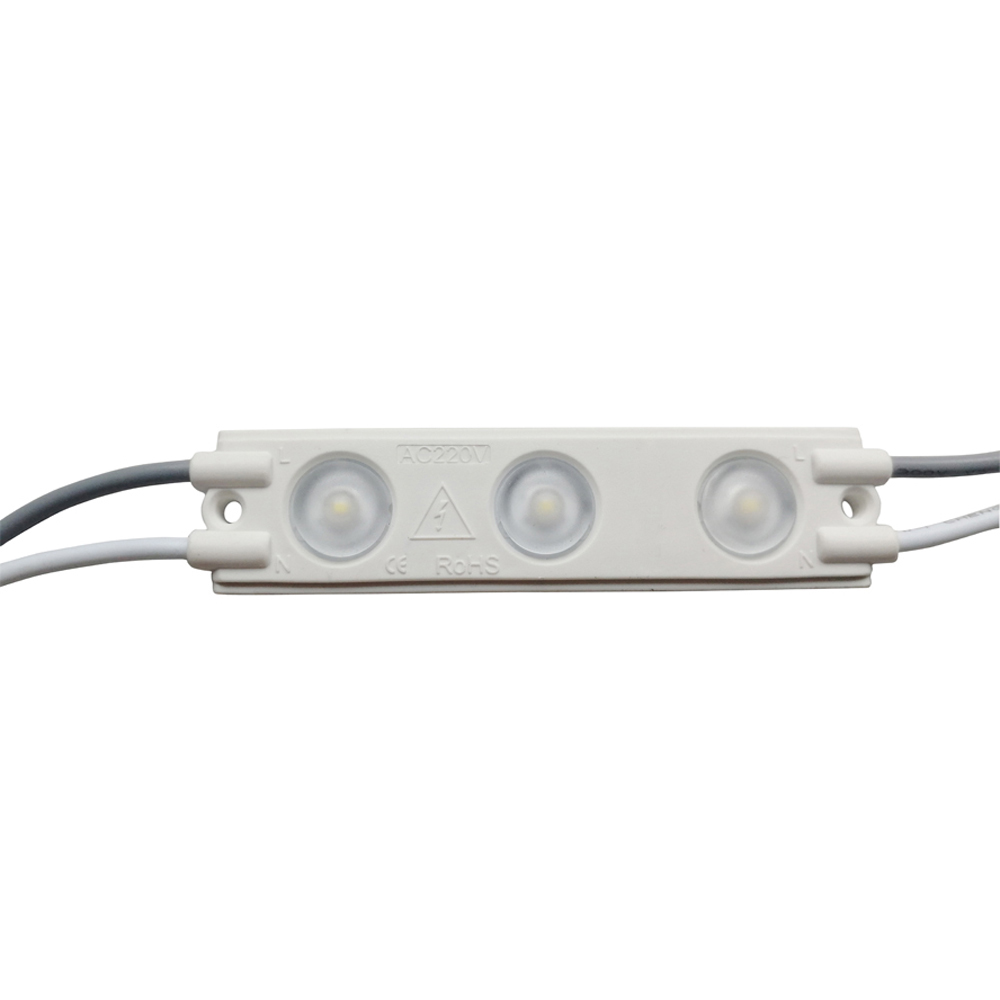

220VAC High Voltage AC 3LED Module (No Need Power Supply)

Product name: 220VAC 3 LED ModuleApplication:For letter & sign box illumination
LED type: Epistar SMD2835LEDs 1.0WattLED quantity: 3pcs
Physical dimension:80mm (L)*16mm (W)*7.5mm (H)Operating voltage: 220VAC / 110VAC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 1.6W/PCSOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:160LM/pcs
Beam angle: 160ºLife span: 35000 Hours
Protection grade: IP65Driven mode: Constant voltage
Weight:0.014KGPackage: 1000pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  20pcsMaterial: FR4 PCB & diffuse Lens 160degrees
Depth/Thickness of Signs:  6~20cm (No Need Power Supply)
