LED Module/

4-LEDs Back-Lit Module

  • STH-F12T3838W3A180-OS
  • Product ID: 1.4W Epistar LED Back-Lit Module
  • LED Chip: high quality 2835 LED *4pcs
  • Lumens:140LM/Module
  • Voltage: 12VDC (1.4W) & 24VDC (1.2W)
  • Material: Aluminum PCB & ABS injection
  • High efficacy up to 110lm/W
  • Waterproof IP65

  • Product Details

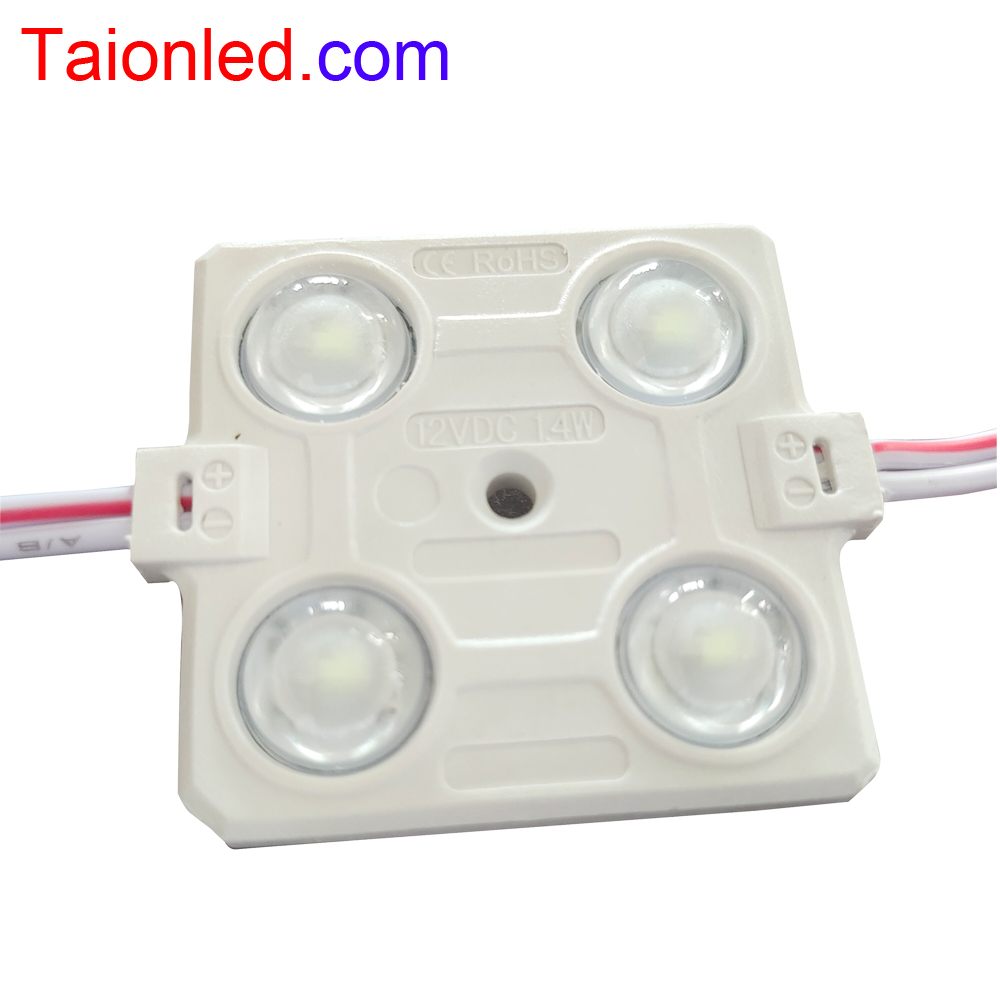

1.4W 4 LED Module Back-Lit For Letter / Lightbox Signage

Product name: 1.4W Back-Lit LED ModuleApplication:For Single-side sign box illumination
LED type: Epistar SMD2835 LEDsLED quantity: 4pcs
Physical dimension:38mm (L)*38mm (W)*6.5mm (H)Operating voltage: 12VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 1.4W/LEDOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:140LM/pcs
Beam angle: 160ºLife span: 50000 Hours
Protection grade: IP65Driven mode: Constant Voltage
Weight:0.017KGPackage: 1500pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  20pcsMaterial: ABS injection & Aluminum PCB
Depth/Thickness of Signs:  6~20cm
