LED Module/

220VAC High Voltage 4 LED Module

  • STH-F220T4440W4A-160
  • Product ID: 1.5W AC LED Module 220V
  • LED Chip: high quality 18V 2835 LED Epistar
  • Lumens:160LM/PCS
  • Lens:  optical lens processing 160degrees
  • Material: FR4 PCB & Silicone IP65
  • High efficacy up to 120lm/W
  • CE RoHS approved

  • Product Details

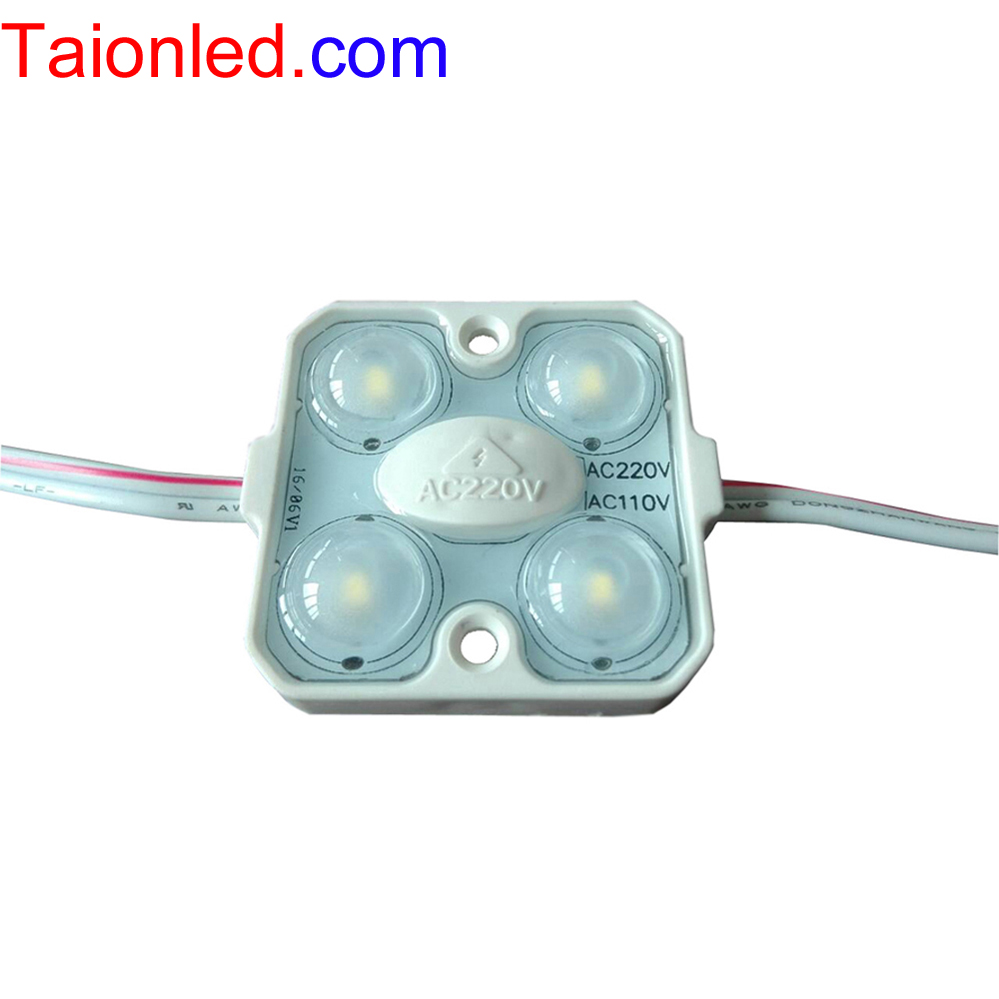

220VAC High Voltage AC 4 LED Module (No Need Power Supply)

Product name: 220VAC 4 LED ModuleApplication:For letter & sign box illumination
LED type: Epistar SMD2835LEDs 1.0WattLED quantity: 4pcs
Physical dimension:44mm (L)*40mm (W)*7mm (H)Operating voltage: 220VAC / 110VAC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 1.5W/PCSOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:160LM/pcs
Beam angle: 175ºLife span: 35000 Hours
Protection grade: IP65Driven mode: Constant voltage
Weight:0.02KGPackage: 200pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  20pcsMaterial: Aluminum PCB & diffuse Lens
Depth/Thickness of Signs:  6~20cm (No Need Power Supply)
