LED Rigid Bar/

Side Light bar for Big boxes 5M Height

  • STH-F24P990W20D-OS
  • Product ID: 26W OSRAM LED Edge-Lit Bar
  • LED Chip: high quality 3535 LED Osram
  • Lumens:2600~2800LM/PCS
  • Lens:  optical lens 36*9degrees (SPECIAL LENS)
  • Material: Aluminum PCB & Silicone glue
  • Lighting for big boxes (5M Height)

  • Product Details

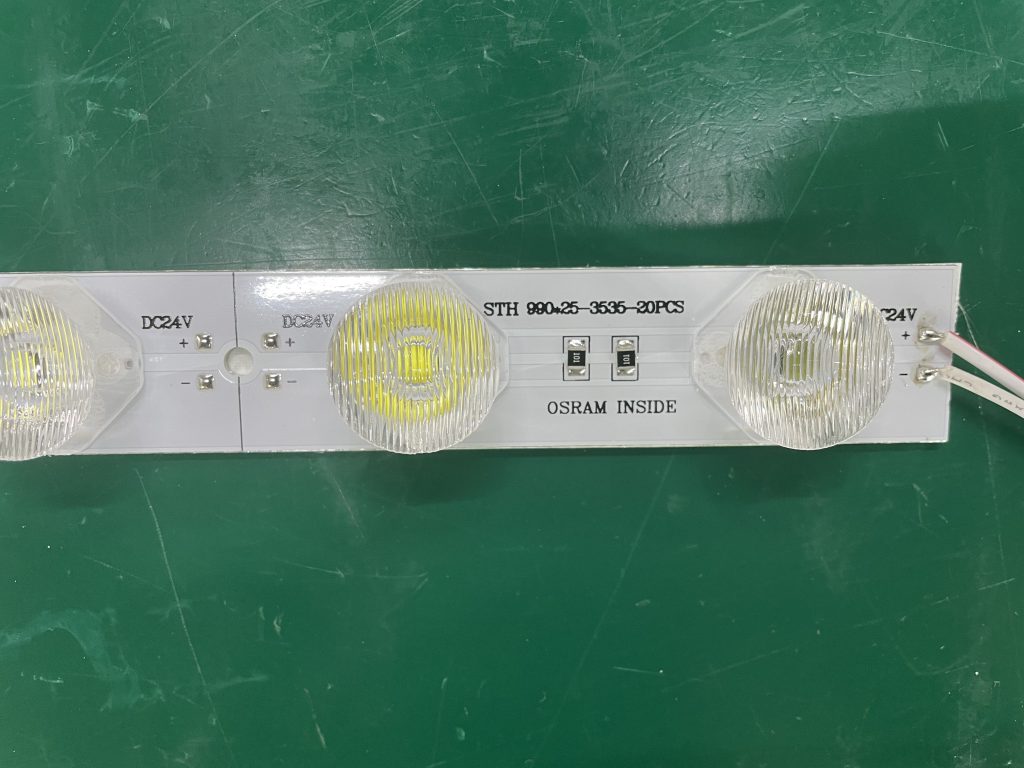

OSRAM 25W Edge-Lit LED Light Bar For Double-sided BIG Light boxes

Product name: Osram Edge-Lit LED BarApplication:For double-side sign BIG box illumination
LED type: OSRAM SMD3535 LEDs 5.0WattLED quantity: 20pcs
Physical dimension:980mm (L)*25mm (W)*15mm (H)Operating voltage: 24VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 25W/PCSOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:2600~2800LM/pcs
Beam angle: 36º*9ºLife span: 50000 Hours
Protection grade: IP65/IP20Driven mode: Constant voltage
Weight:0.3KGPackage: 300pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  2pcsMaterial: Silicone Glue & Aluminum PCB
Depth/Thickness of Signs:  6~20cm
