LightboxLEDRigidStrips-TaionLEDLighting

LED Rigid Bar/

Lightbox LED Rigid Strips

  • STH-F24P600W1L12B92
  • Product ID: 12W NICHIA LED Back-Lit Strip
  • LED Chip: high quality 3030 LED Nichia/Osram
  • Lumens:1440LM/PCS
  • Lens:  optical lens processing 175degrees
  • Material: Aluminum PCB & Silicone glue IP67
  • High efficacy up to 120lm/W
  • CE RoHS approved

  • Product Details
  • Non-Waterproof Type For Indoors

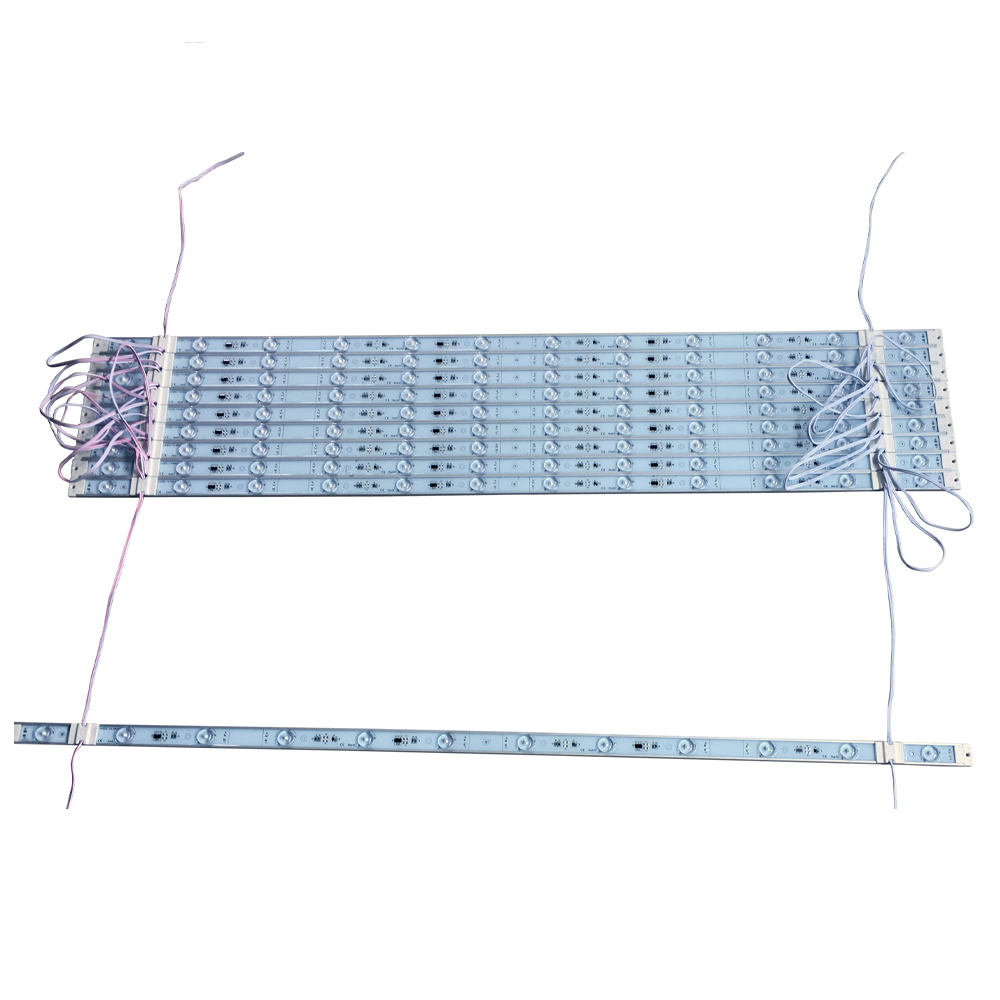

Osram 12W Back-Lit LED Rigid Strip For single-sided Light boxes

Product name: Back-Lit LED Rigid StripApplication:For Single-side Slim sign box illumination
LED type: OSRAM SMD3030 LEDs 1.0WattLED quantity: 12pcs
Physical dimension:920mm (L)*21.5mm (W)*11.5mm (H)Operating voltage: 24VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 12W/PCSOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:1440LM/pcs
Beam angle: 175ºLife span: 50000 Hours
Protection grade: IP67Driven mode: Constant voltage
Weight:0.2KGPackage: 200pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  4pcsMaterial: Silicone Glue & Aluminum PCB
Depth/Thickness of Signs:  6~12cm

NON-Waterproof Type Available (For Indoors)

Datasheet of 12LEDs F24P600W1L12B92
