LED Rigid Bar/

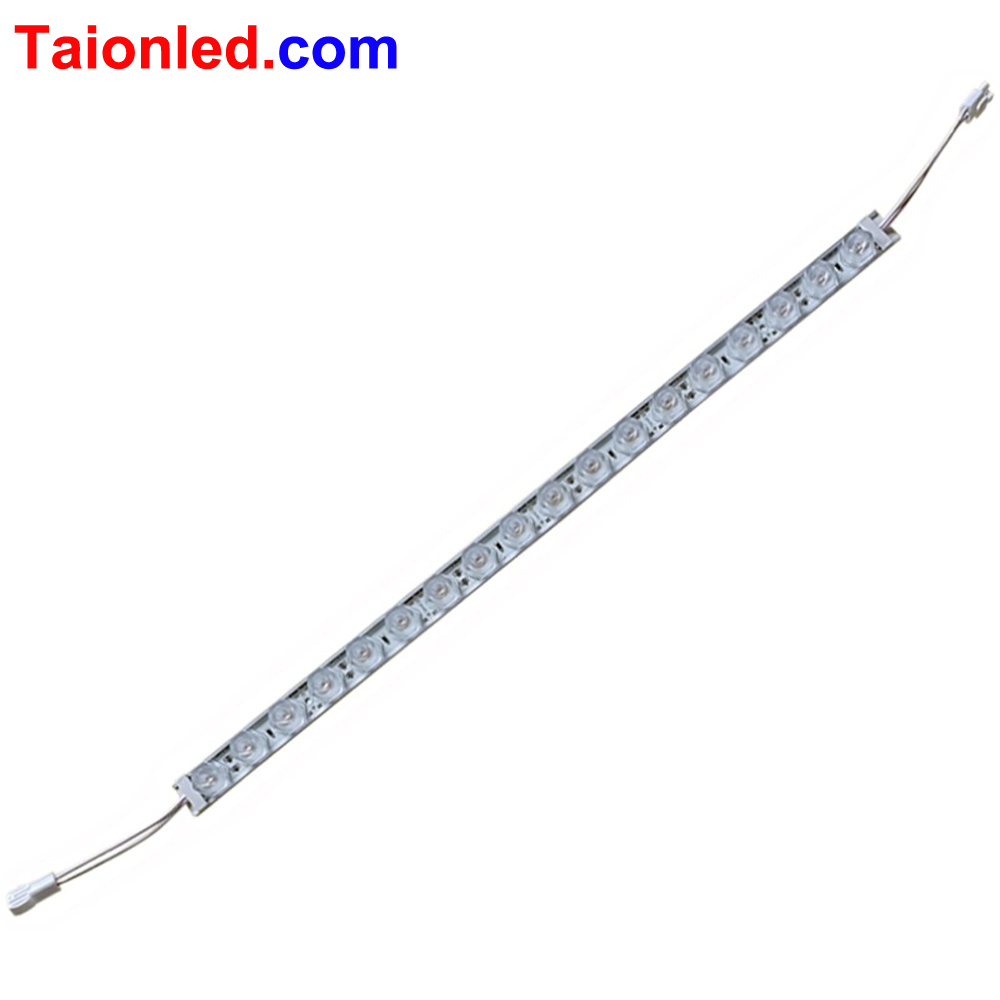

Edge LED Light Bar 18LEDs

  • STH-F24P600W1L18C50
  • Product ID: 18W NICHIA LED Edge-Lit Bar
  • LED Chip: high quality 3030 LED Nichia/Osram
  • Lumens:1800~2200LM/PCS
  • Lens:  optical lens processing 45*15degrees
  • Material: Aluminum PCB & Silicone glue
  • High efficacy up to 120lm/W
  • Silicone waterproof IP65
  • CE RoHS approved

  • Product Details

NICHIA 18W Edge-Lit LED Light Bar For Double-sided Light boxes

Product name: Nichia Edge-Lit LED BarApplication:For double-side sign box illumination
LED type: NICHIA SMD3030 LEDs 1.0WattLED quantity: 18pcs
Physical dimension:500mm (L)*21.5mm (W)*11.5mm (H)Operating voltage: 24VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 18W/PCSOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:1800~2160LM/pcs
Beam angle: 45º*15ºLife span: 50000 Hours
Protection grade: IP65Driven mode: Constant voltage
Weight:0.07KGPackage: 200pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  4pcsMaterial: Silicone Glue & Aluminum PCB
Depth/Thickness of Signs:  6~12cm
