LED Rigid Bar/

LED Lattice Strips Indoors Lighting

  • STH-N24P600W1L12B950
  • Product ID: 12W Osram LED Back-Lit Strip
  • LED Chip: high quality 2835 LED Osram
  • Lumens:1440LM/PCS
  • Lens:  optical lens processing 175degrees
  • Material: Aluminum PCB & IP20
  • High efficacy up to 120lm/W
  • CE RoHS approved

  • Product Details

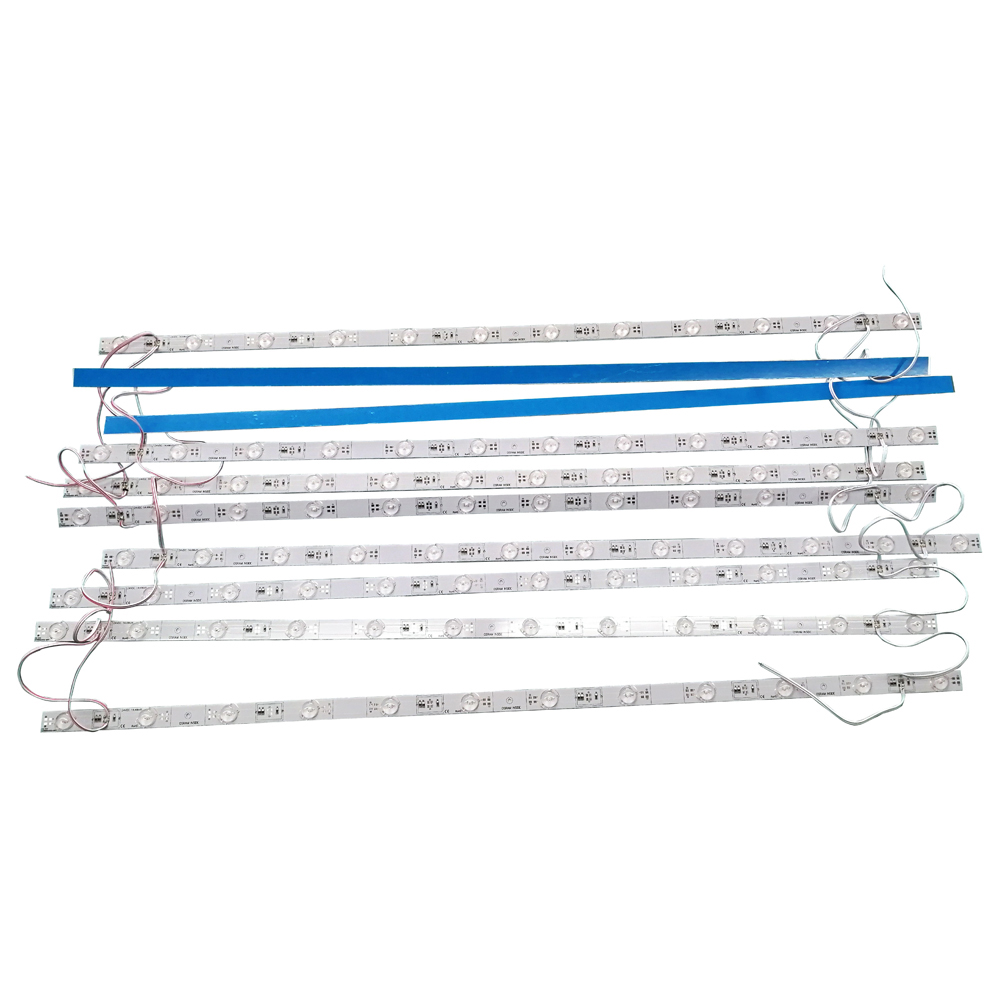

Osram Back-Lit LED Strip Lattice For indoors Light boxes Lighting

Product name: Back-Lit LED Rigid StripApplication:For Single-side Slim sign box illumination
LED type: OSRAM SMD2835LEDs 1.0WattLED quantity: 12pcs
Physical dimension:950mm (L)*18mm (W)*1.6mm (H)Operating voltage: 24VDC/12VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 12W/PCSOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:1440LM/pcs
Beam angle: 175ºLife span: 50000 Hours
Protection grade: IP20Driven mode: Constant voltage
Weight:0.1KGPackage: 200pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  4pcsMaterial: Aluminum PCB & diffuse Lens
Depth/Thickness of Signs:  6~12cm
