LED Module/

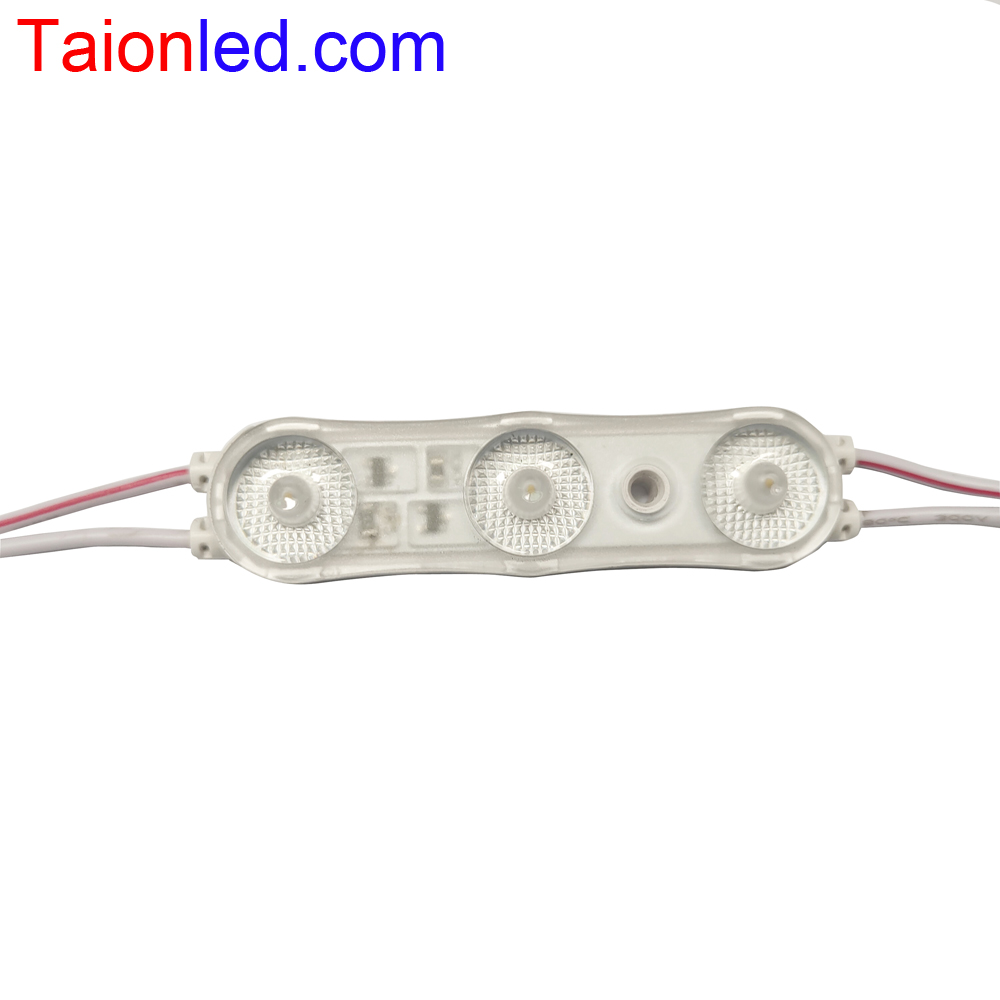

Osram 3LEDs Back-Lit Module

  • STH-F12T7018W3A180-OS
  • Product ID: 1.5W OSRAM LED Back-Lit Module
  • LED Chip: high quality 2835 LED Osram
  • Lumens:160~165LM/Module
  • Lens: Diffuse reflection optical processing 180degrees
  • Material: Aluminum PCB & ABS injection
  • High efficacy up to 110lm/W
  • Waterproof IP65

  • Product Details

Osram  1.5W LED Module Back-Lit For Letter / Lightbox Signage

Product name: 1.5W Back-Lit LED ModuleApplication:For Single-side sign box illumination
LED type: Osram SMD2835 LEDsLED quantity: 3pcs
Physical dimension:70mm (L)*18mm (W)*6.5mm (H)Operating voltage: 12VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 1.5W/LEDOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:150LM/pcs
Beam angle: 180ºLife span: 50000 Hours
Protection grade: IP65Driven mode: Constant Voltage
Weight:0.018KGPackage: 1500pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  20pcsMaterial: ABS injection & Aluminum PCB
Depth/Thickness of Signs:  6~20cm
