LED Module/

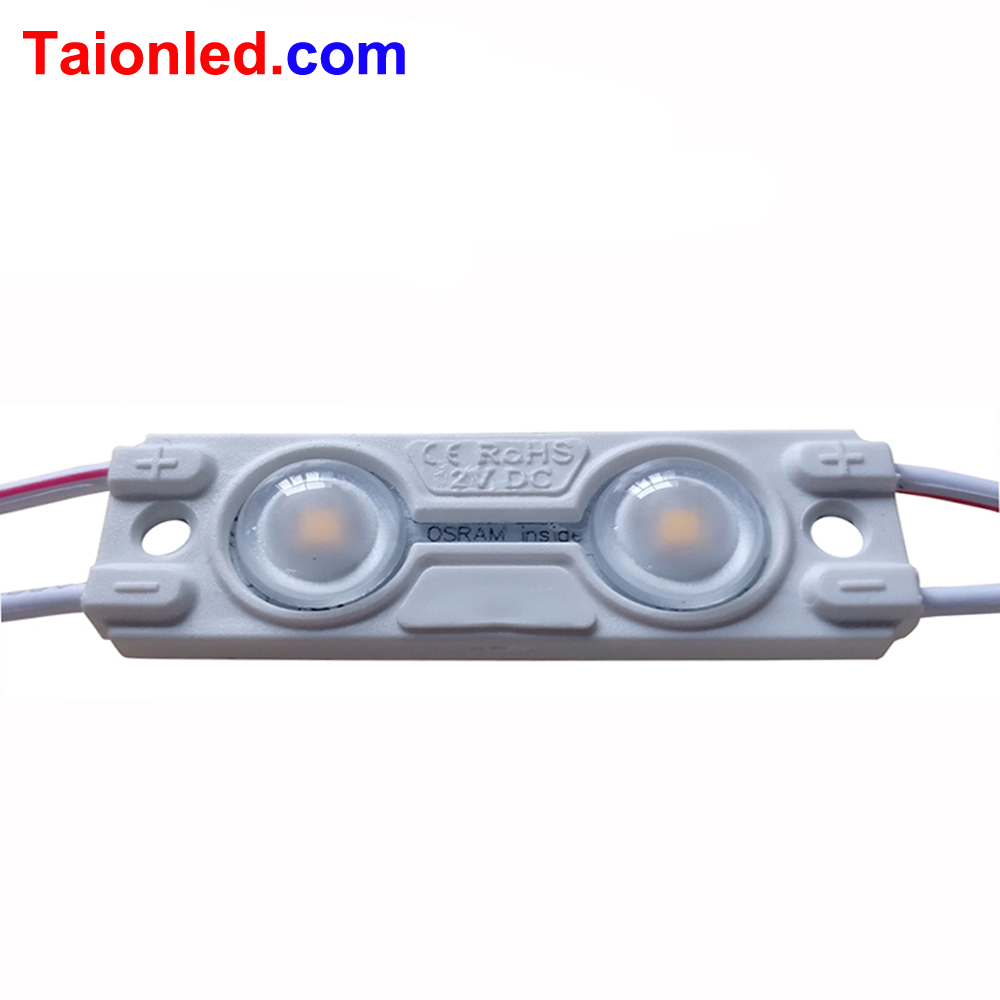

2 LED Back-lit Module

  • STH-F12T4715W2A160-OS
  • Product ID:Osram 2 LED Module For Bqck-Lit Signage
  • LED Chip: Adopt high quality 2835 OSRAMLED
  • LED Qty: 2PCS/module
  • Lens: Diffuse reflection optical processing 160degrees
  • Material: Aluminum PCB & ABS for TOP quality
  • Waterproof IP65

  • Product Details

2 LED Module Osram Back-Lit For Letter/Boxes Signs.

Product name: 2 LEDs Sign Module Back-LitApplication:For Channel letter sign box illumination
LED type: OSRAM SMD2835 LEDLED quantity: 2pcs
Physical dimension:47mm (L)*15mm (W)*6.5mm (H)Operating voltage: 12VDC
Storage Temperature:-50℃~70℃Color Rendering Index (CRI): 80
Power consumption: 0.72WOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:PW:70~80 LM/LED;
Beam angle: 160ºLife span: 50000 Hours
Protection grade: IP65Driven mode: Constant Voltage
Weight:0.05KGPackage: 1500pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  30pcsIP grade: IP65
Depth/Thickness of Signs:  5~15cm
