LED Module/

Single Mini LED Module

  • STH-F12T1220W1A
  • Product ID: 0.24W Mini Single LED Module
  • LED Chip: high quality 5050 LED Epistar
  • Lumens:16~18LM/Module
  • Volt: DC12V
  • Material: FR4 PCB & ABS injection
  • High efficacy up to 120lm/W
  • Waterproof IP65

  • Product Details

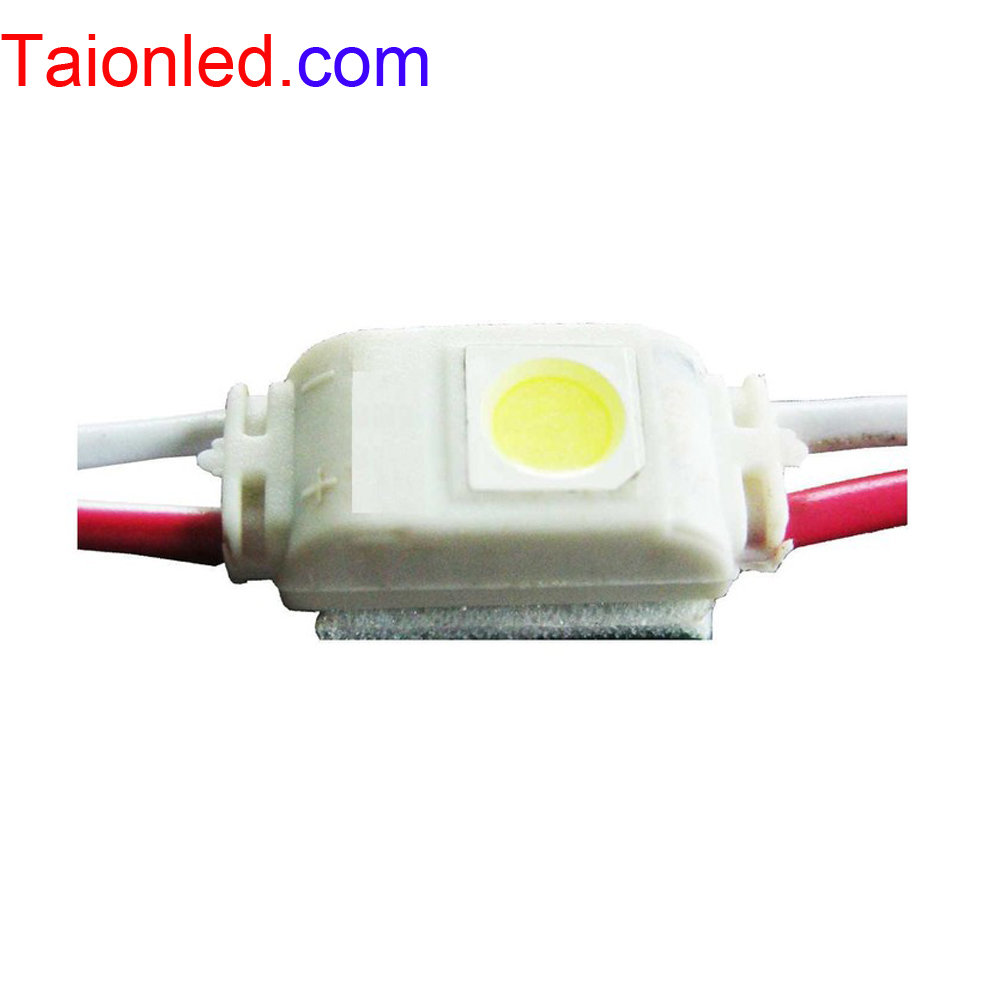

Mini 0.24w 5050LED Module Back-Lit For slim letters

Product name: mini Single LED ModuleApplication:For slim channel letter signs illumination
LED type: Epistar SMD5050 LEDLED quantity: 1pcs
Physical dimension:12mm (L)*20mm (W)*3.5mm (H)Operating voltage: 12VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 0.24WOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:16~18LM/pcs
Beam angle: 120ºLife span: 50000 Hours
Protection grade: IP65Driven mode: Constant Voltage
Weight:0.003KGPackage: 3000pcs per inner carton, 2 cartons in 1 box
Quantity to illuminate each  evenly:  30pcsMaterial: ABS injection & FR4 PCB
Depth/Thickness of Signs:  2~6cm
