LED Module/

1.8W LED Back-Lit Module

  • Product ID: 1.8W High Lumen LED Backlit Module
  • LED Chip: high quality 3030 LED Epistar
  • Lumens:180~200LM/LED
  • Lens: Diffuse reflection optical processing 175degrees
  • Material: Aluminum PCB & ABS injection
  • High efficacy up to 120lm/W
  • Waterproof IP67

  • Product Details

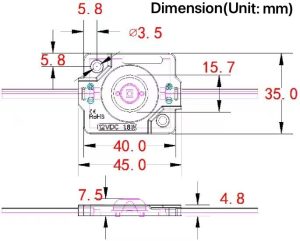

  • Module Dimension

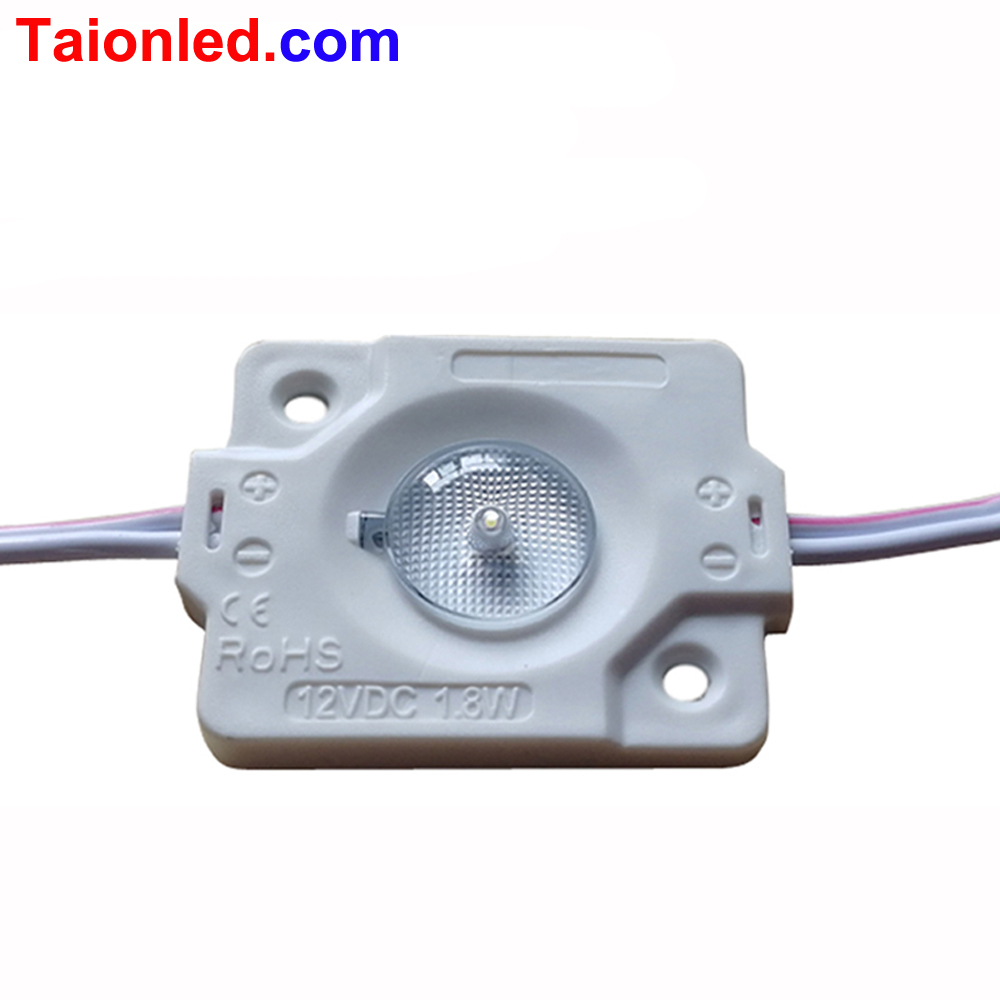

High Power 1.8W LED Module Back-Lit For Single Light Boxes

Product name: 1.8W Back-Lit LED ModuleApplication:For Single-side sign box illumination
LED type: Epistar SMD3030 1.0WattLED quantity: 1pcs
Physical dimension:45mm (L)*35mm (W)*7.5mm (H)Operating voltage: 12VDC
Storage Temperature:-50℃~80℃Color Rendering Index (CRI): 80
Power consumption: 1.8W/LEDOperating temperature:  -40℃~60℃
Emitting color: Pure White/ Warm WhiteLuminous output each color:180~200LM/pcs
Beam angle: 175ºLife span: 50000 Hours
Protection grade: IP65Driven mode: Constant Voltage
Weight:0.018KGPackage: 200pcs per inner carton, 2 cartons in 1
Quantity to illuminate each  evenly:  20Lumens/㎡: 3400LM
Depth/Thickness of Signs:  6~20cm
